Ricoh MP C2504 - Scanner FFC

To Next Page

To Previous Page

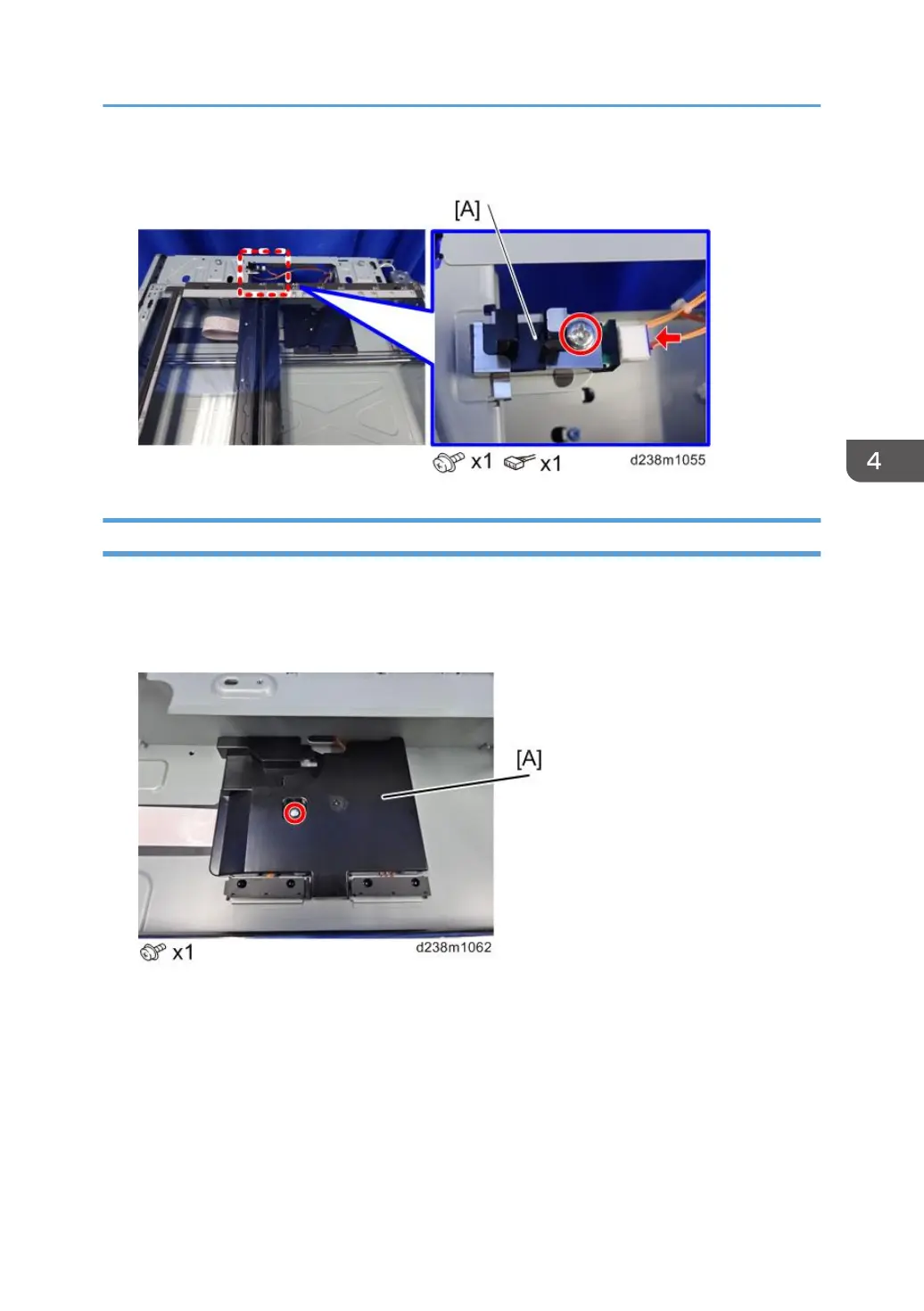

2. ARDF/Platen cover sensor [A]

Scanner FFC

1. Exposure glass (page 434)

2. Remove the FFC from the scanner carriage (page 436)

3. Original size sensor harness cover [A]

Scanner Unit

447
