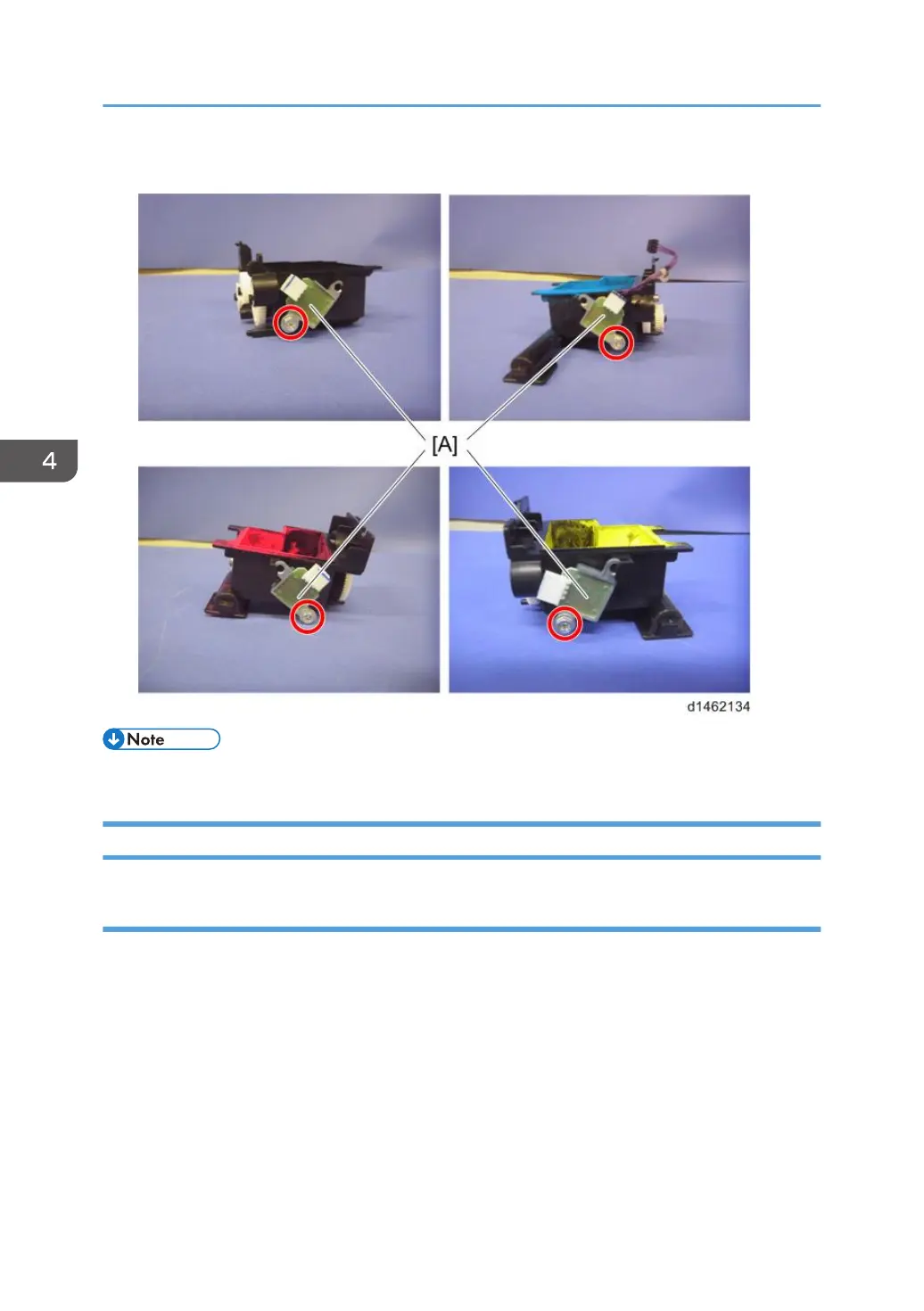

2. Toner end sensor [A]

• The toner end sensors are the same for each color.

Toner Bottle Drive Motor

1. Toner supply motor/K (page 521)

4. Replacement and Adjustment

530
