Ricoh MP C2504 User Manual

PCU Drive source
Bk PCU motor: Black / ITB drive motor*
CMY PCU motor: CMY
*
The PCU motor: Black / ITB drive motor is used to drive both the image transfer unit and the waste toner
bottle.
Charge

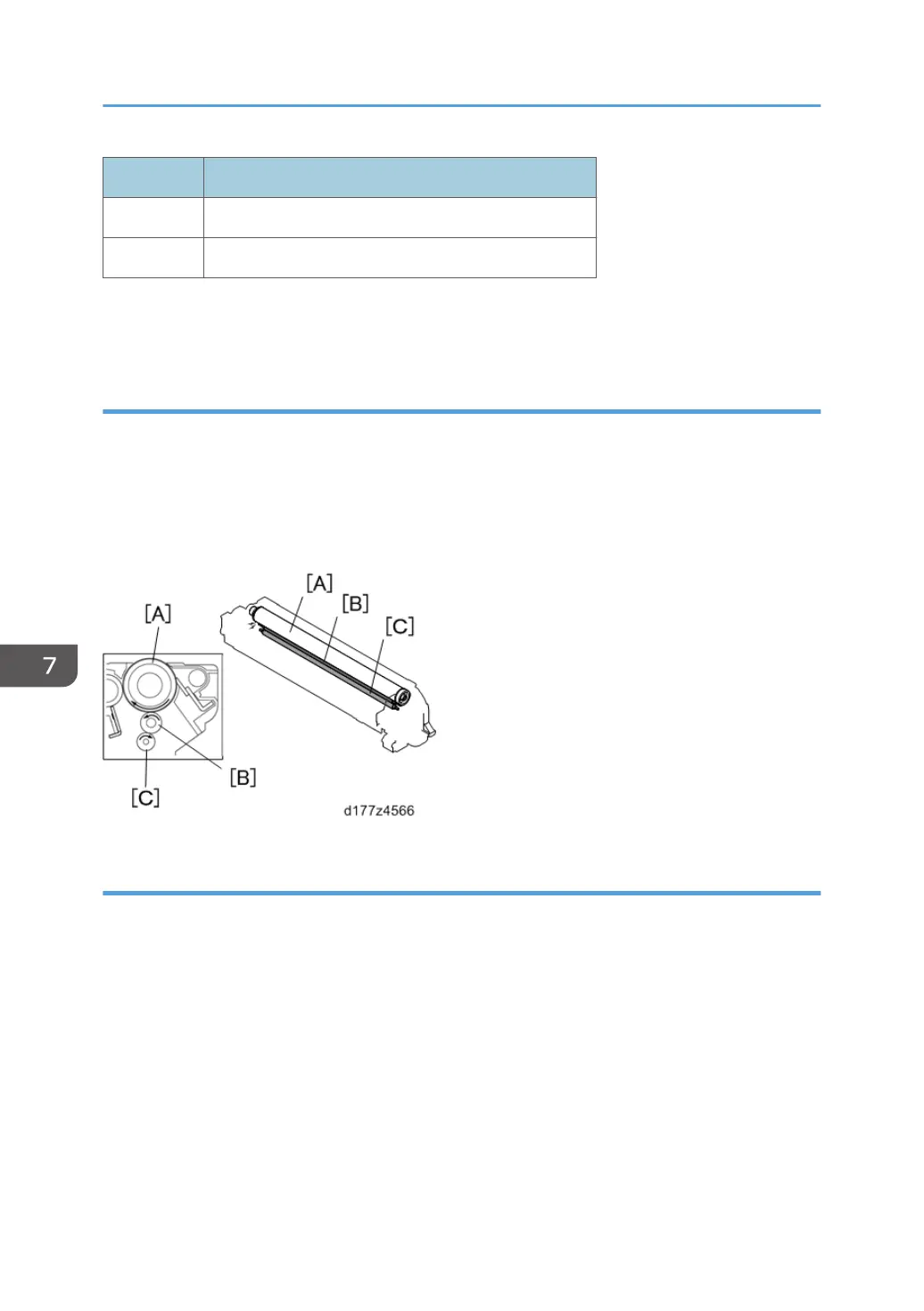

This device uses a charge roller [B] for all four colors to reduce generation of ozone.
The charge roller, which is a rubber-covered roller that has a metal shaft, rotates in the forward direction
contacting the drum [A], and applies a charge to the drum surface uniformly.
When the charge roller is dirty, an uneven charge is generated, so a cleaning roller [C] always contacts
the charge roller.
Drum Cleaning
Residual toner on the drums after image transfer is recovered by a cleaning blade [A]. The cleaning
blade is installed counter to the drum rotation in contact with the drum, and scrapes toner off.
7. Detailed Descriptions
1136

Ricoh MP C2504 Specifications

General

Print Technology	Laser
Functions	Print, Copy, Scan, Fax
Print Resolution	1200 x 1200 dpi
Scan Type	Flatbed, ADF
Max Scan Resolution	600 x 600 dpi
Copy Resolution	600 x 600 dpi
Max Paper Size	A3
Duplex Printing	Yes
Memory (RAM)	2 GB
Print Speed	25 ppm (A4)
Copy Speed	25 cpm (A4)
Fax Resolution	200 x 200 dpi
Paper Capacity	1200 sheets
Connectivity	USB, Ethernet, Wi-Fi
Dimensions	587 x 685 x 913 mm
Control Panel	9-inch Smart Operation Panel
