Ricoh MP C2504 - Left Rear Cover

To Next Page

To Previous Page

1. Open the front cover.

2. Paper exit tray (page 419)

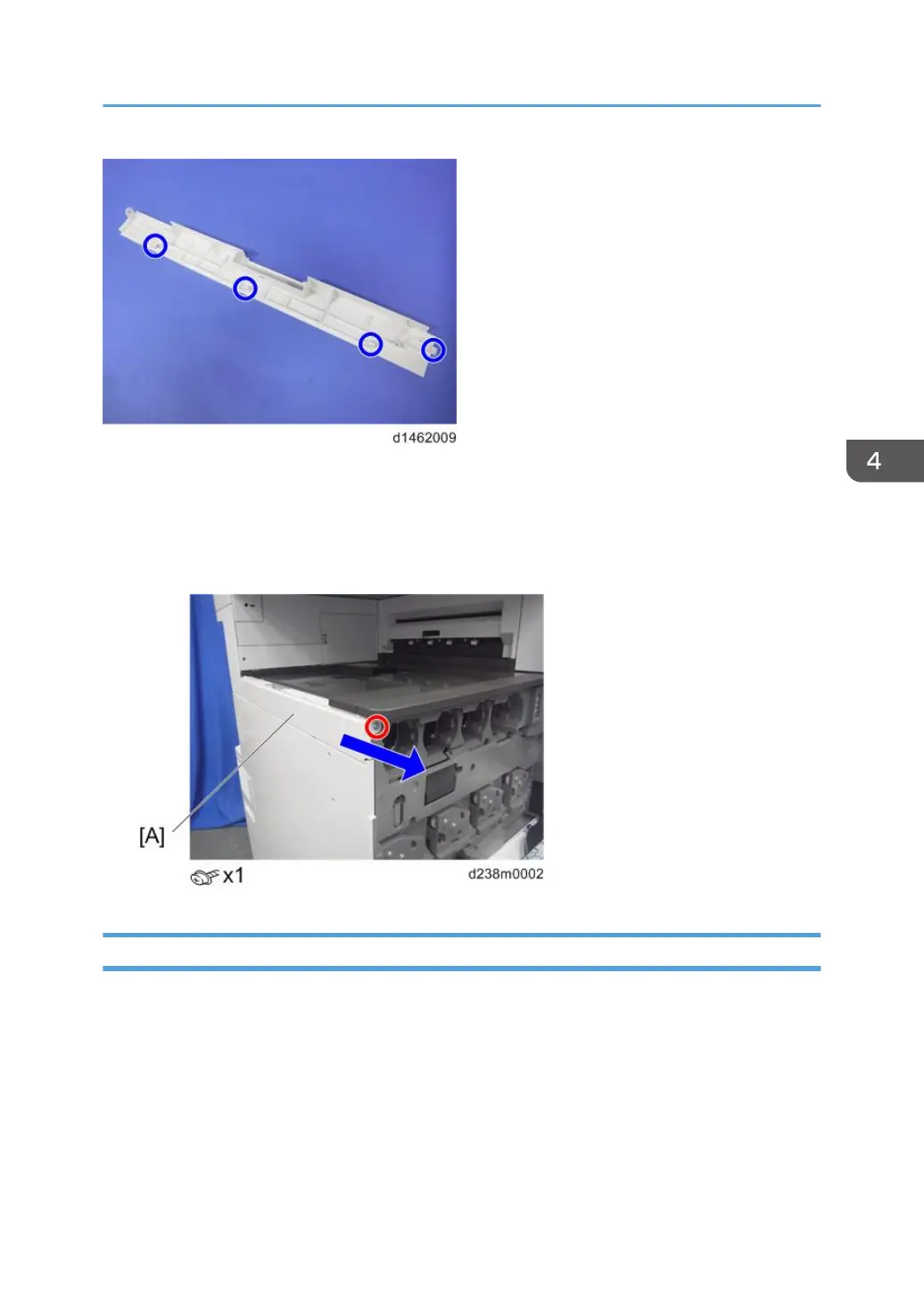

3. Upper left cover [A]

Slide the cover in the direction of the blue arrow.

Left Rear Cover

1. Upper left cover (page 406)

Exterior Covers

407
