Ricoh MP C2504 - Smart Operation Panel; Operation Panel Unit

To Next Page

To Previous Page

Smart Operation Panel

This section explains how to remove the Smart Operation Panel from the machine. For details about

disassembling the Smart Operation Panel, See the service manual for Smart Operation Panel 2nd

Generation.

Operation Panel Unit

1. Scanner front cover (page 432)

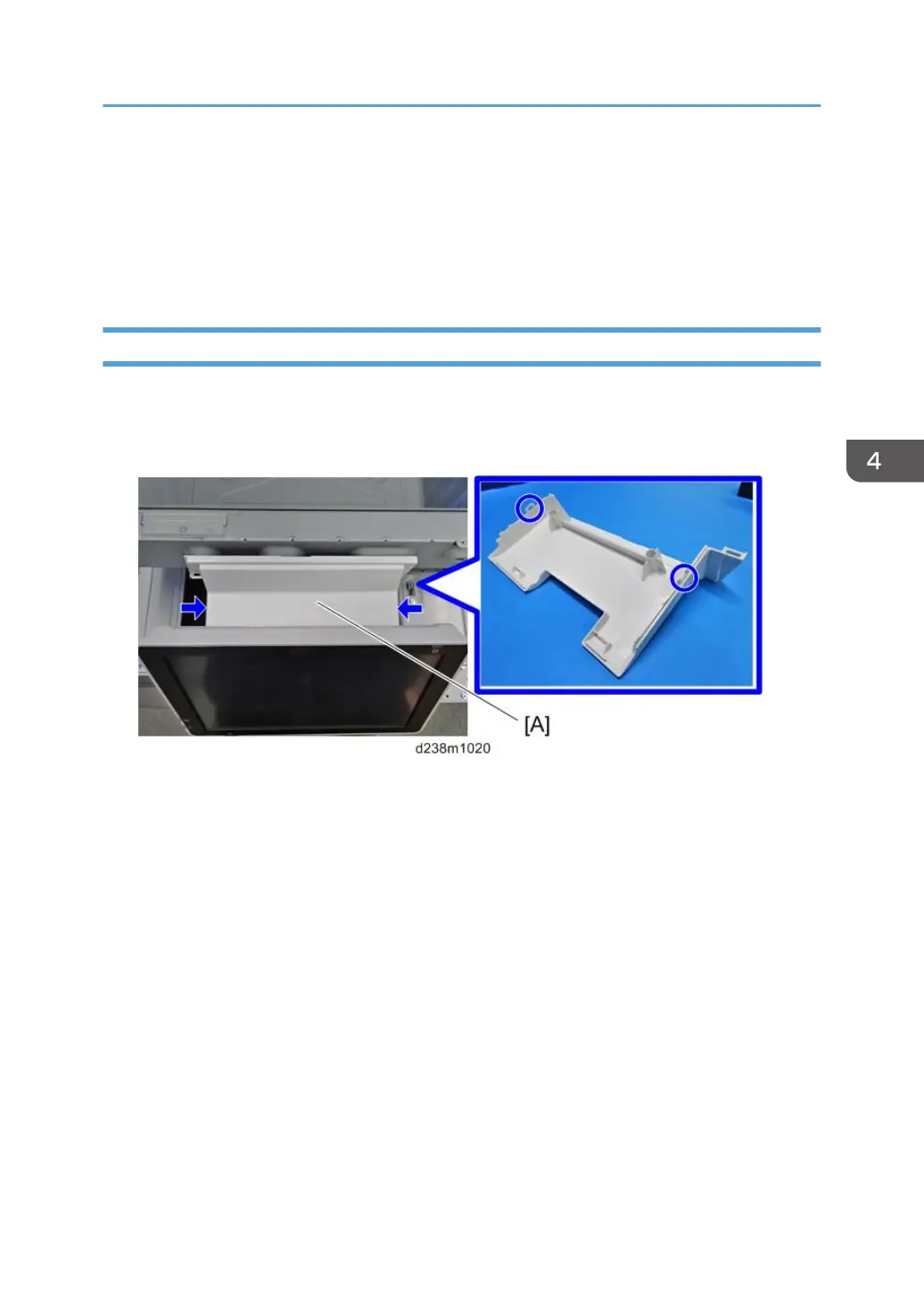

2. Holding down both the sides of the operation panel upper cover [A], unhook the tabs

(indicated by blue circles) and remove the cover.

Smart Operation Panel

423
