Scanning
Overview

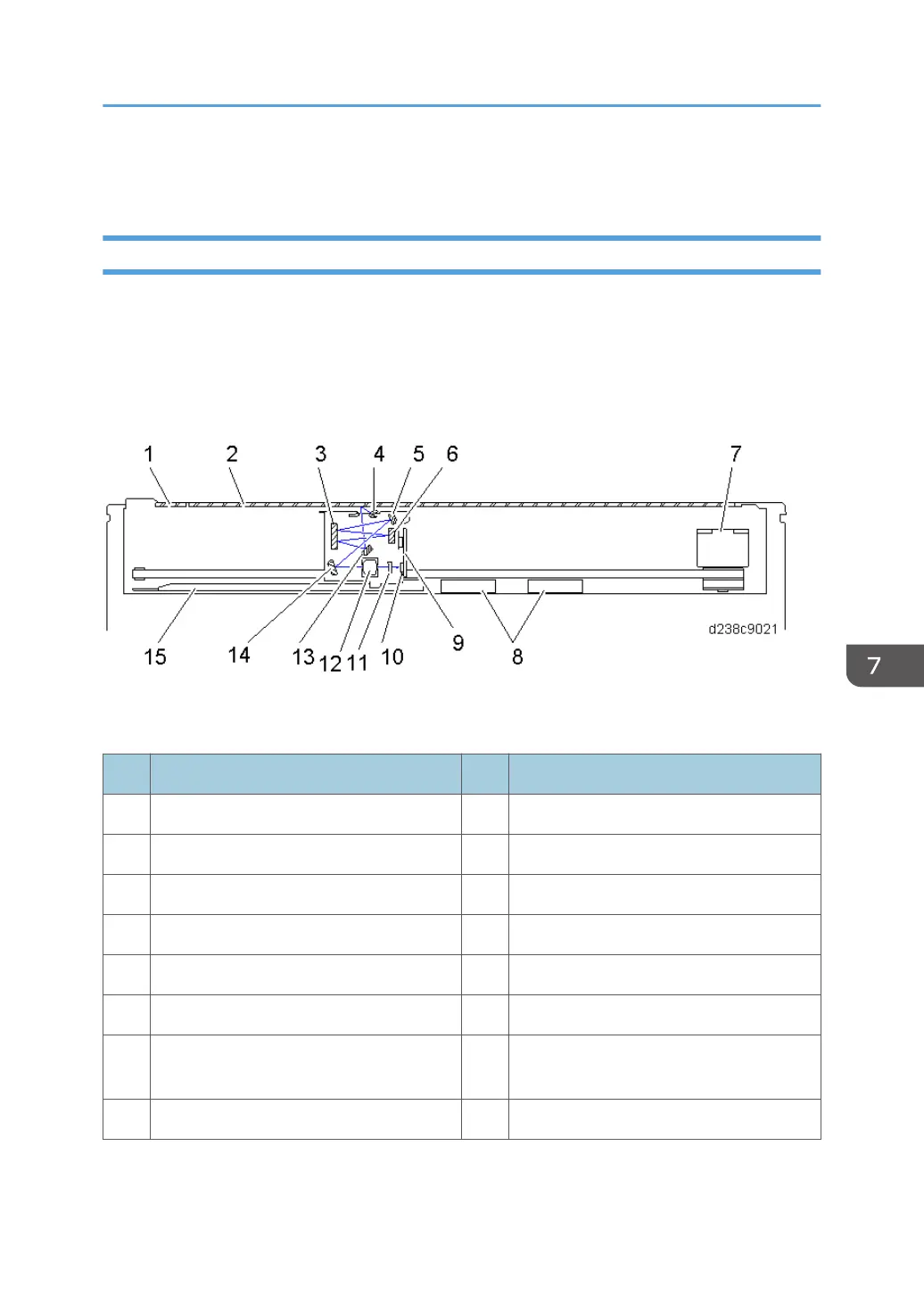

The short focus scanner is realized by implementing a lens block (SBU, CCD, and Lens) on the carriage.
After the scanner lamp unit emits the light to the document, the light goes through route shown below
and reaches the CCD.
Scanner lamp unit (LED) -> Original -> 1st mirror (13) -> 2nd mirror (3) -> 3rd mirror (6) -> 2nd mirror
(3) -> 4th mirror (5) -> 5th mirror (14) -> lens -> pre-sensor lens -> CCD
No. Description No. Description
1 Sheet-through exposure glass 9 Sensor board unit (SBU)
2 Exposure glass 10 CCD
3 2nd mirror 11 Pre-sensor lens
4 Scanner lamp unit (LED) 12 Lens
5 4th mirror 13 1st mirror
6 3rd mirror 14 5th mirror
7 Scanner motor 15
Anti-condensation heater* (Scanner
heater)
8 APS sensors
*Service part
Scanning
1099

Ricoh MP C2504 Specifications

General

Print Technology	Laser
Functions	Print, Copy, Scan, Fax
Print Resolution	1200 x 1200 dpi
Scan Type	Flatbed, ADF
Max Scan Resolution	600 x 600 dpi
Copy Resolution	600 x 600 dpi
Max Paper Size	A3
Duplex Printing	Yes
Memory (RAM)	2 GB
Print Speed	25 ppm (A4)
Copy Speed	25 cpm (A4)
Fax Resolution	200 x 200 dpi
Paper Capacity	1200 sheets
Connectivity	USB, Ethernet, Wi-Fi
Dimensions	587 x 685 x 913 mm
Control Panel	9-inch Smart Operation Panel
