Bypass Feed Paper Size Detection
Paper size width detection is performed by the bypass width sensor (rotary switch).
The bypass feed size switch has a rotation plate which rotates together with the side fence of the bypass
feed table, and detects the paper size.
Paper portrait/landscape is determined by the length sensor.

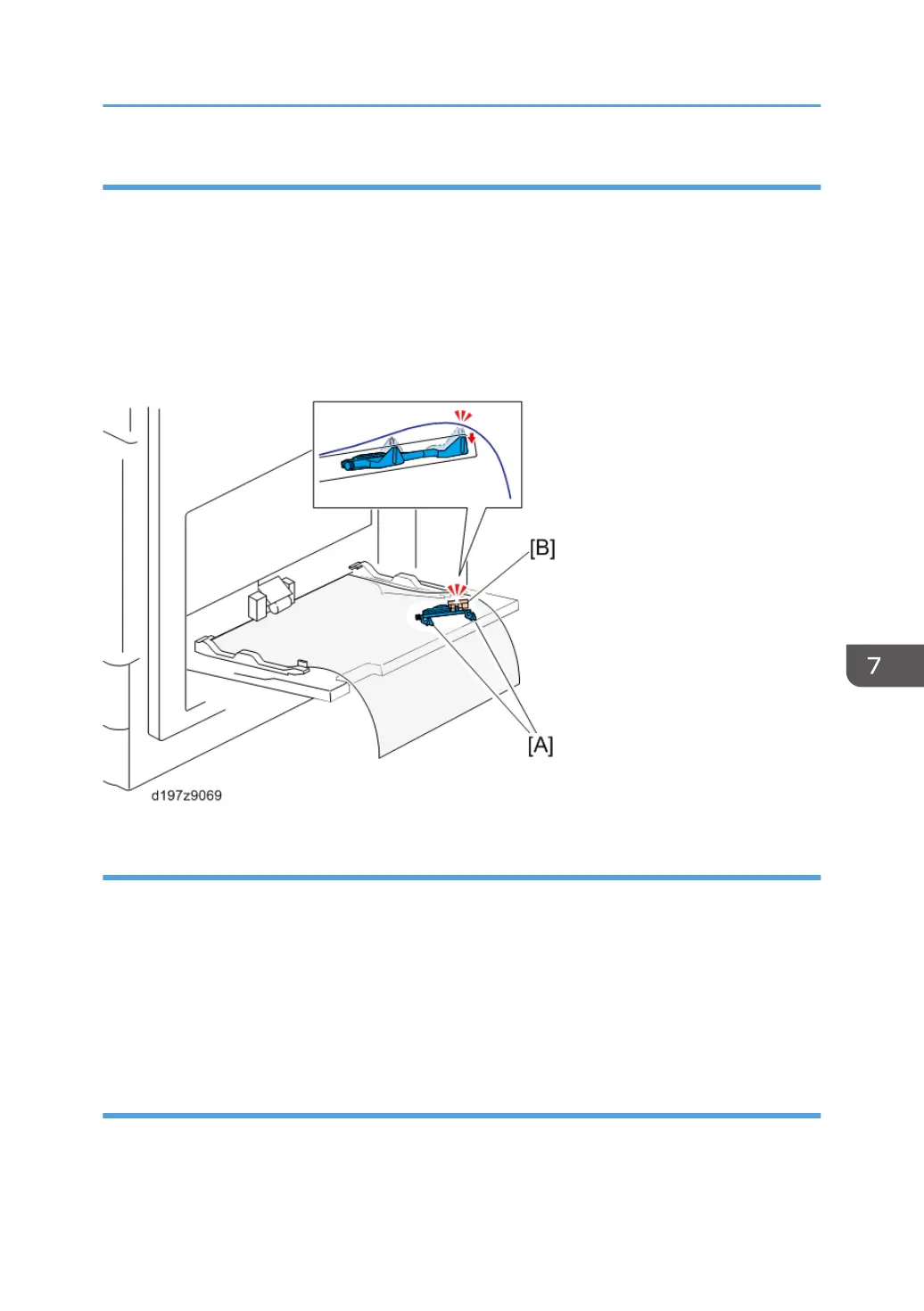

Two feelers [A] for the bypass length sensor [B] are added to the rear of the tray to prevent false
detection of paper length caused by floating at the rear of paper when long paper is set without pulling
out the bypass tray extension.
Bypass Feed Paper End Detection
To detect bypass feed paper end, a paper detection feeler and bypass feed paper end sensor are
provided.
When the paper is set, the bypass feed paper end sensor switches ON (interrupt), and paper set is
detected.
When there is no more paper, the detection feeler falls into a hole in the bypass feed table, the bypass
feed paper end sensor switches OFF (pass), and paper end is detected.
Bypass Paper Feeder Drive
The paper feed roller, Reverse roller and pick-up roller are driven by the bypass/duplex motor.
Paper Feed/ Transport Section
1173

Ricoh MP C2504 Specifications

General

Print Technology	Laser
Functions	Print, Copy, Scan, Fax
Print Resolution	1200 x 1200 dpi
Scan Type	Flatbed, ADF
Max Scan Resolution	600 x 600 dpi
Copy Resolution	600 x 600 dpi
Max Paper Size	A3
Duplex Printing	Yes
Memory (RAM)	2 GB
Print Speed	25 ppm (A4)
Copy Speed	25 cpm (A4)
Fax Resolution	200 x 200 dpi
Paper Capacity	1200 sheets
Connectivity	USB, Ethernet, Wi-Fi
Dimensions	587 x 685 x 913 mm
Control Panel	9-inch Smart Operation Panel
