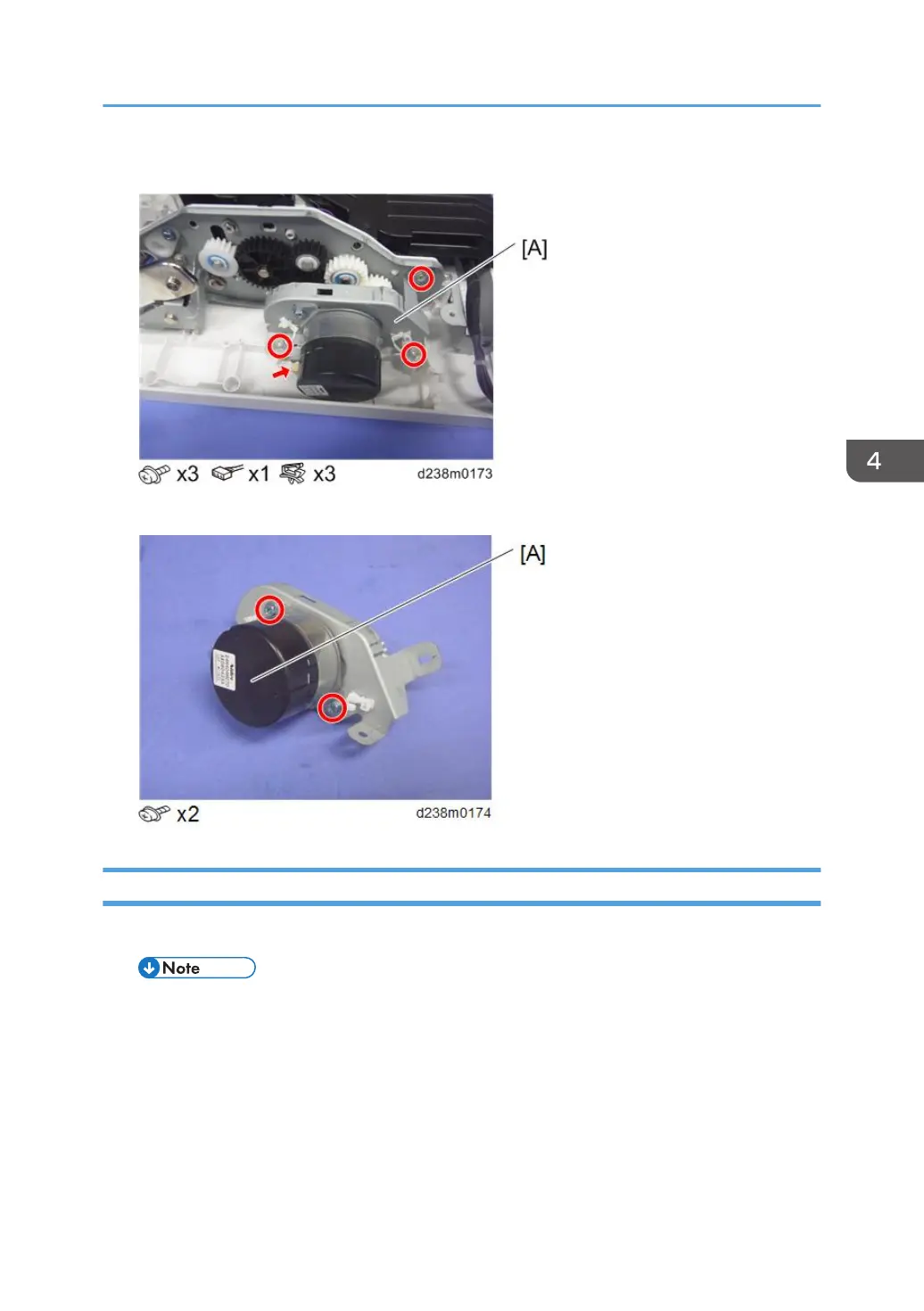

3. Duplex/Bypass motor unit [A]
4. Duplex/Bypass Motor [A]
Duplex Entrance Sensor
1. Remove two tabs, and remove the transport guide [A].
Make sure to release the tab on the right [C] first.
When you reattach this part, make sure to attach it from the tab on the left [B] first.
Duplex Unit
593
