Ricoh MP C2504 - Rear Lower Cover; Right Rear Cover

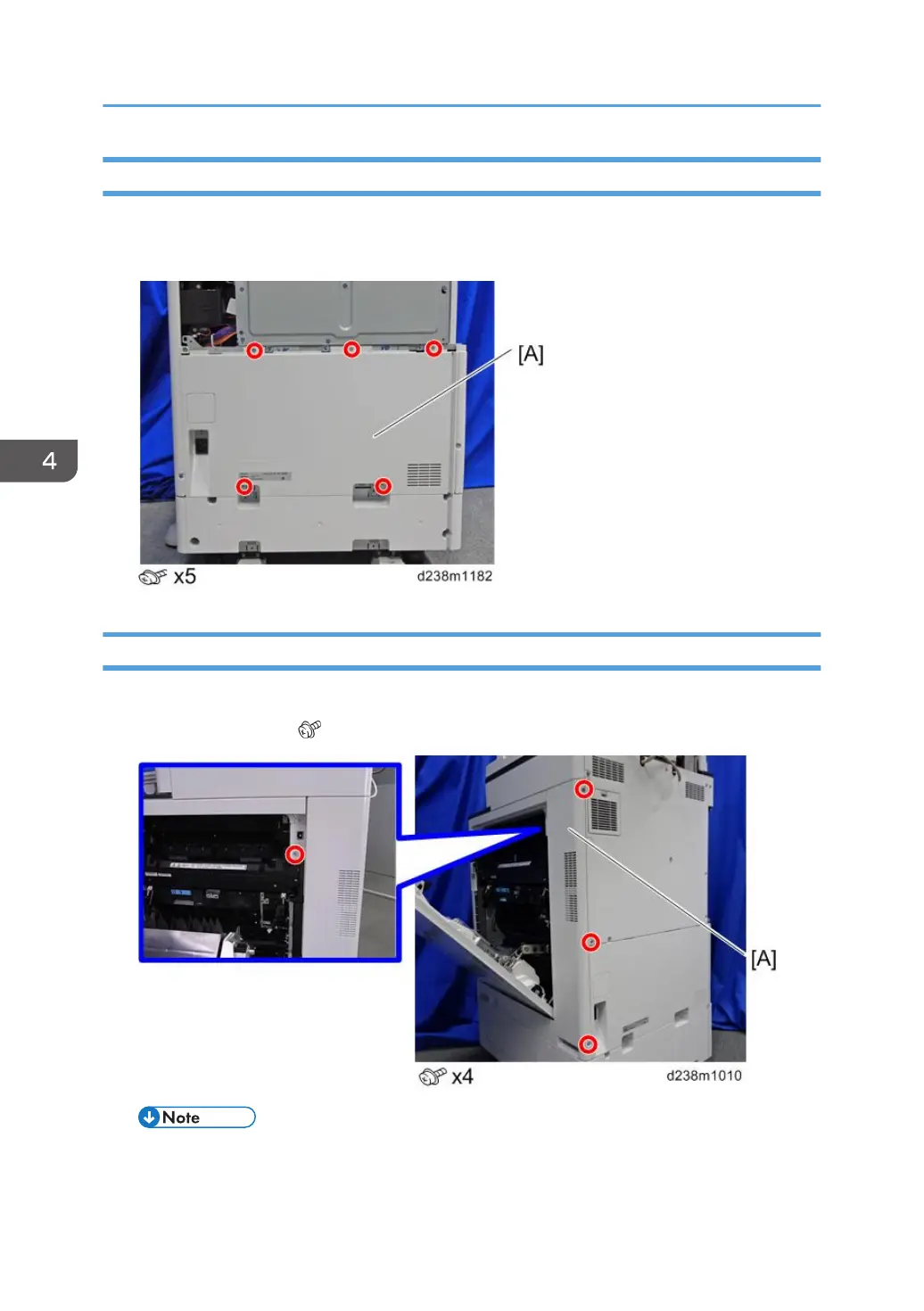

Rear Lower Cover
1. Rear cover (page 411)
2. Rear lower cover [A]
Right Rear Cover
1. Open the right door.
2. Right rear cover [A] ( x4, among them, tapping screw x1)
• When installing, insert the projections [A] in the holes [B], taking care not to trap the harness
inside.
4. Replacement and Adjustment
412
