Ricoh MP C2504 - Controller Cover; Upper Left Cover

To Next Page

To Previous Page

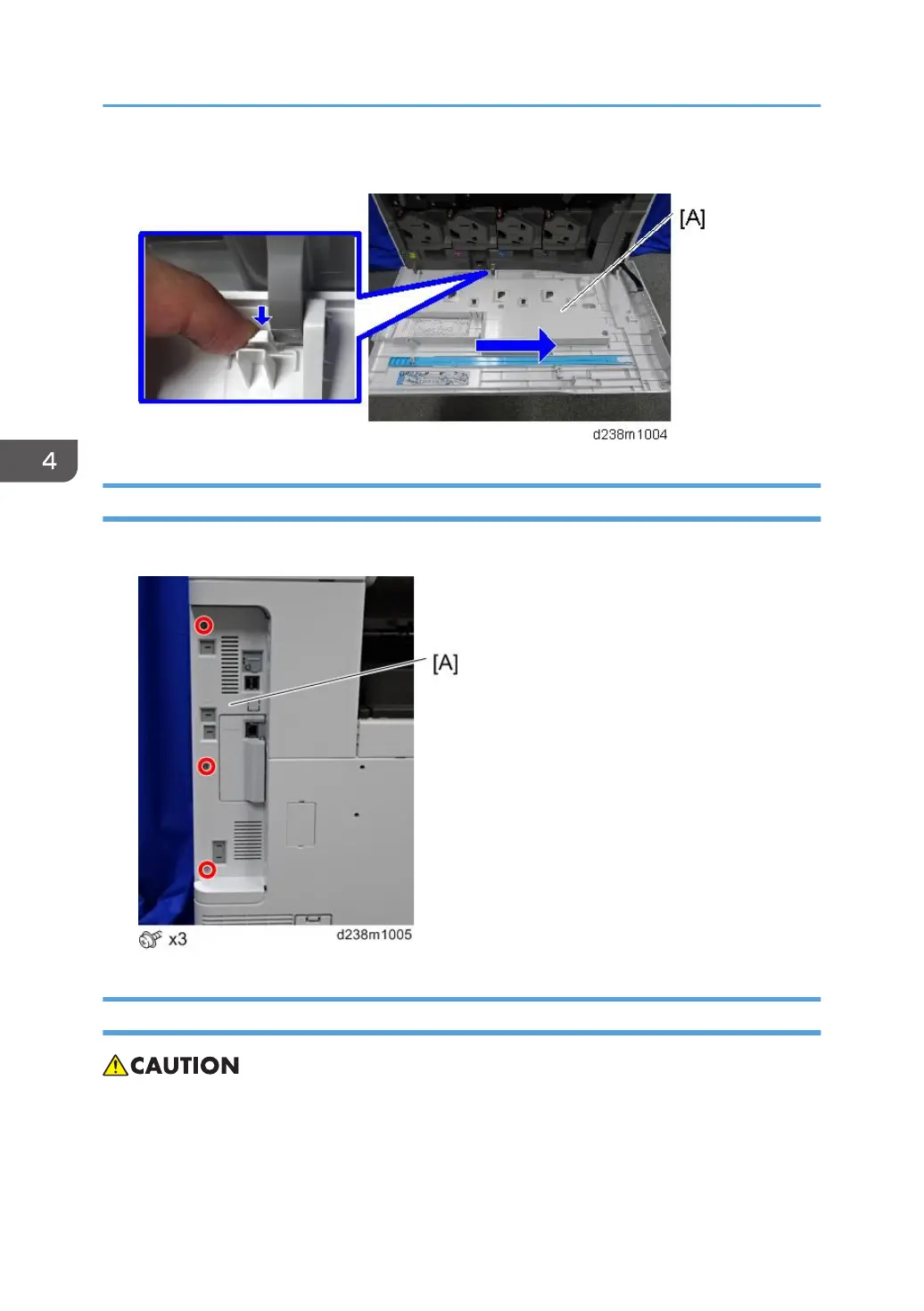

3. Pressing down the stopper, slide the front cover [A] to the right and detach it.

Controller Cover

1. Controller cover [A]

Upper Left Cover

• Each part enclosed by a blue circle has a tab. Be careful not to damage it when attaching and

detaching.
