Ricoh MP C2504 - Inner Upper Cover; Inner Lower Cover

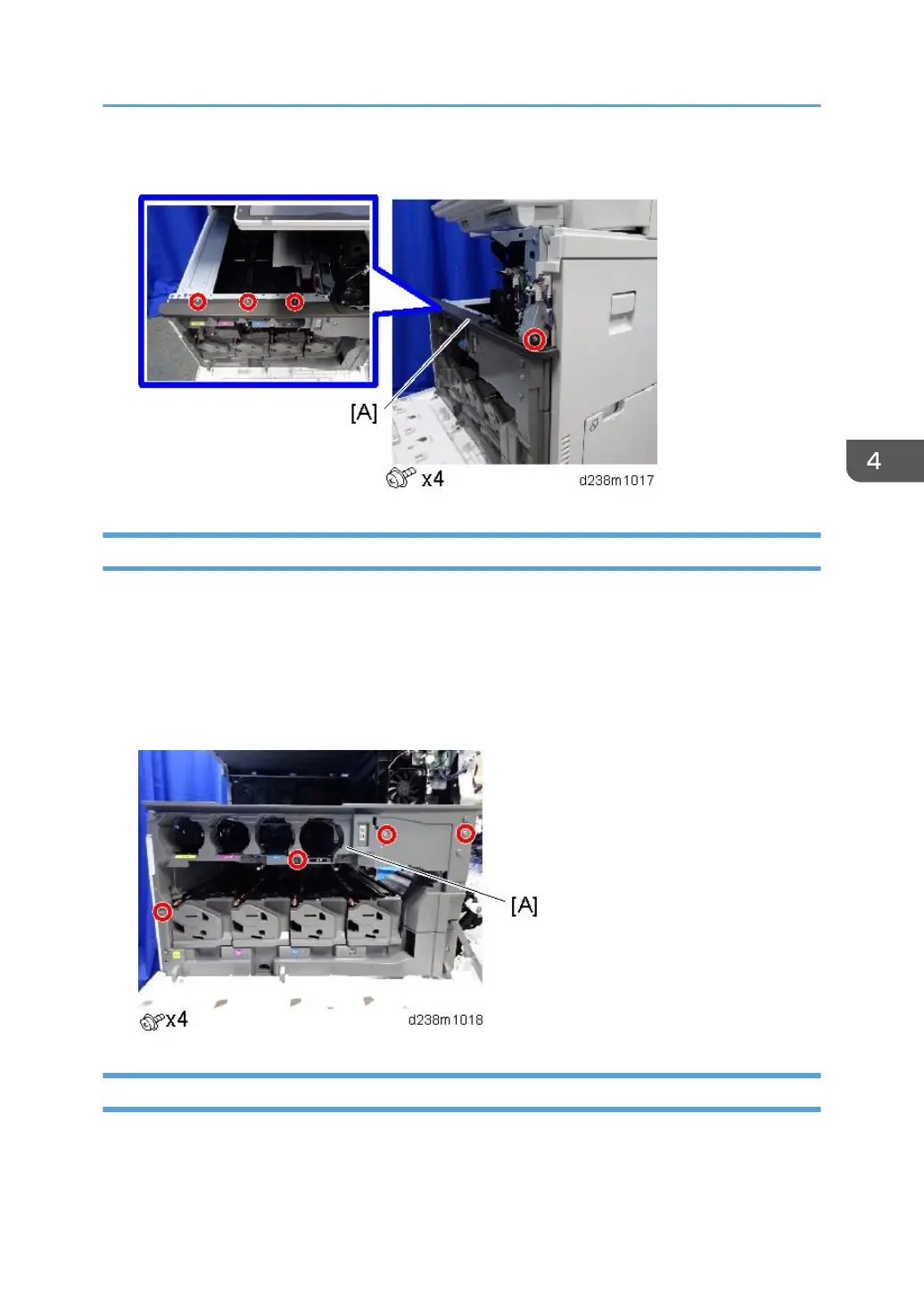

3. Paper exit front cover [A]
Inner Upper Cover
1. Open the front cover, and remove the belt. (page 405)
2. Open the right door.
3. Paper exit front cover (page 420)
4. Image transfer belt unit (page 474)
5. Inner upper cover [A]
Inner Lower Cover
1. Front cover (page 405)
2. Inner upper cover (page 421)
Exterior Covers
421
