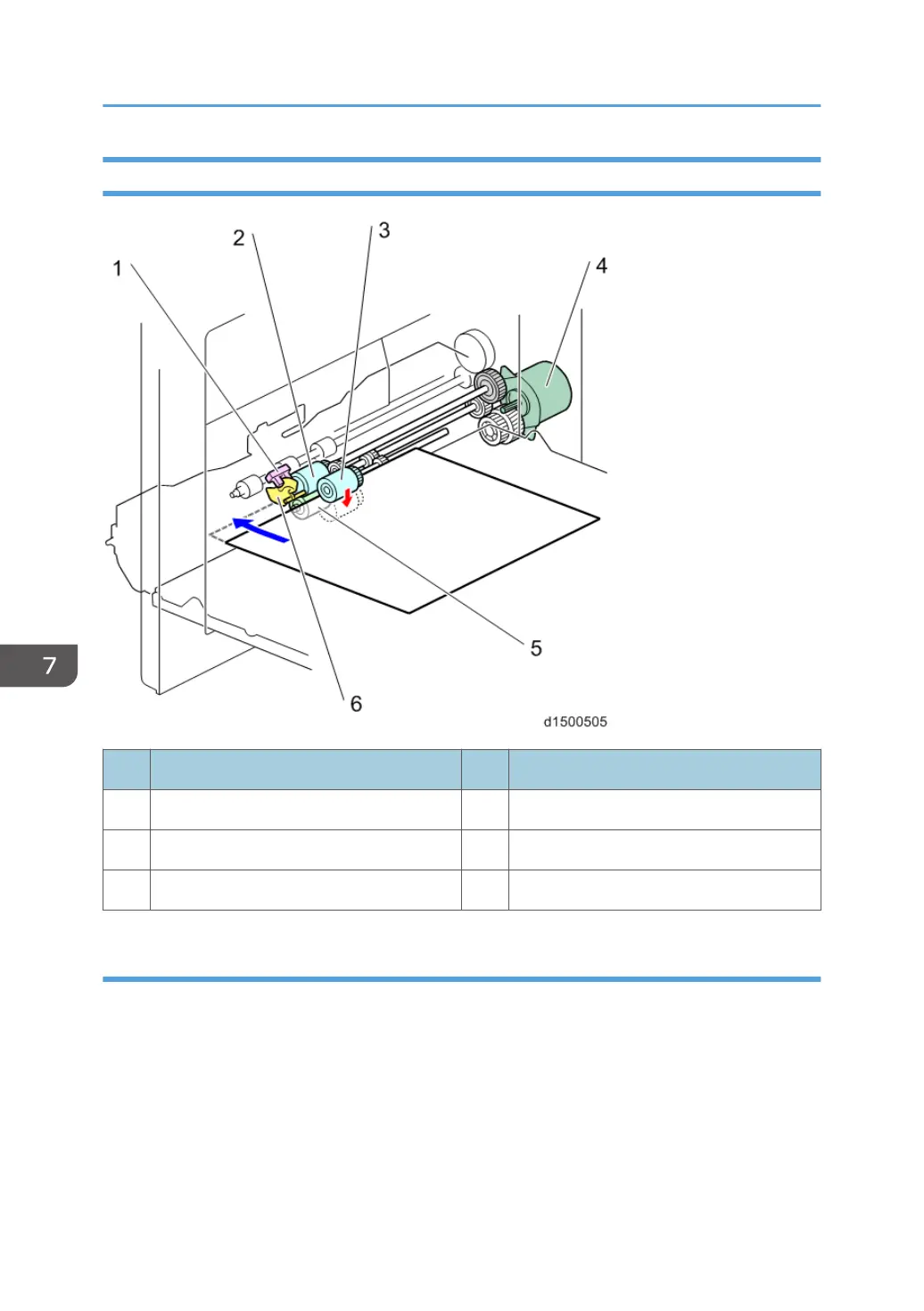

Bypass Feed Section
No. Description No. Description
1 Manual feed lever end sensor 4 Bypass/Duplex motor
2 Bypass paper feed roller 5 Bypass/Reverse roller
3 Bypass pick-up roller 6 Paper detection filler
Bypass Feed Paper/ Separation Mechanism
The bypass paper feed mechanism employs an FRR system. The bypass paper feed unit comprises a
paper feed roller, reverse roller and pick-up roller.
When the paper feed tray is selected and the machine is started, the bypass pick-up solenoid is switched
OFF, and paper is supplied by the bypass/duplex motor (CCW).
In standby mode, the bypass pick-up roller is not in contact with the paper surface. This is opposite to the
paper feed tray.
7. Detailed Descriptions
1172
