Ricoh MP C2504 - Exposure Glass; Scanner Upper Cover

To Next Page

To Previous Page

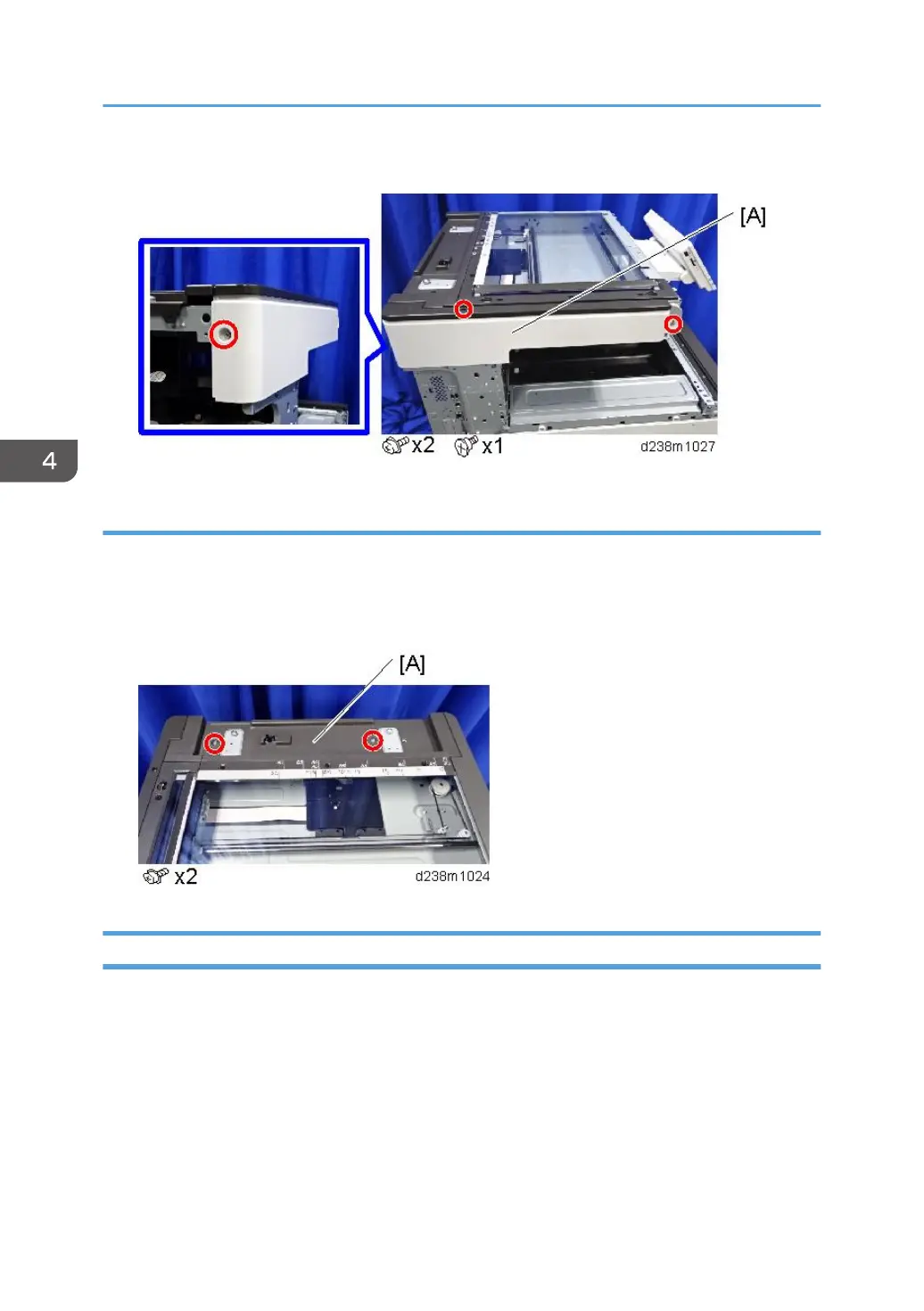

2. Scanner left cover [A]

Scanner Upper Cover

1. Platen cover or ADF

2. Rear cover (page 411)

3. Scanner Upper Cover [A]

Exposure Glass

1. Open the platen cover or ADF.

2. Scanner right cover (page 433)

4. Replacement and Adjustment

434
