Ricoh MP C2504 - Fuse Position

Name Output connector
Capacity Part number
Market exchange
possible
Voltage Part name Remarks
FU2 CN911(IPU)
5A 11071229 NO
5V SLT 250V 5A
Installed on DC power
supply
FU3 CN912(IOB)
8A NO
24V 51MS(P)080L
Installed on DC power
supply
FU4
CN917 (Interlock switch
[IOB])
8A NO
24V 51MS(P)080L
Installed on DC power
supply
FU5
CN917 (Interlock switch
[IOB])
8A NO
24V 51MS(P)080L
Installed on DC power
supply
FU7
CN913(FIN)
CN914(BANK)
8A NO
24V 51MS(P)080L
Installed on DC power
supply

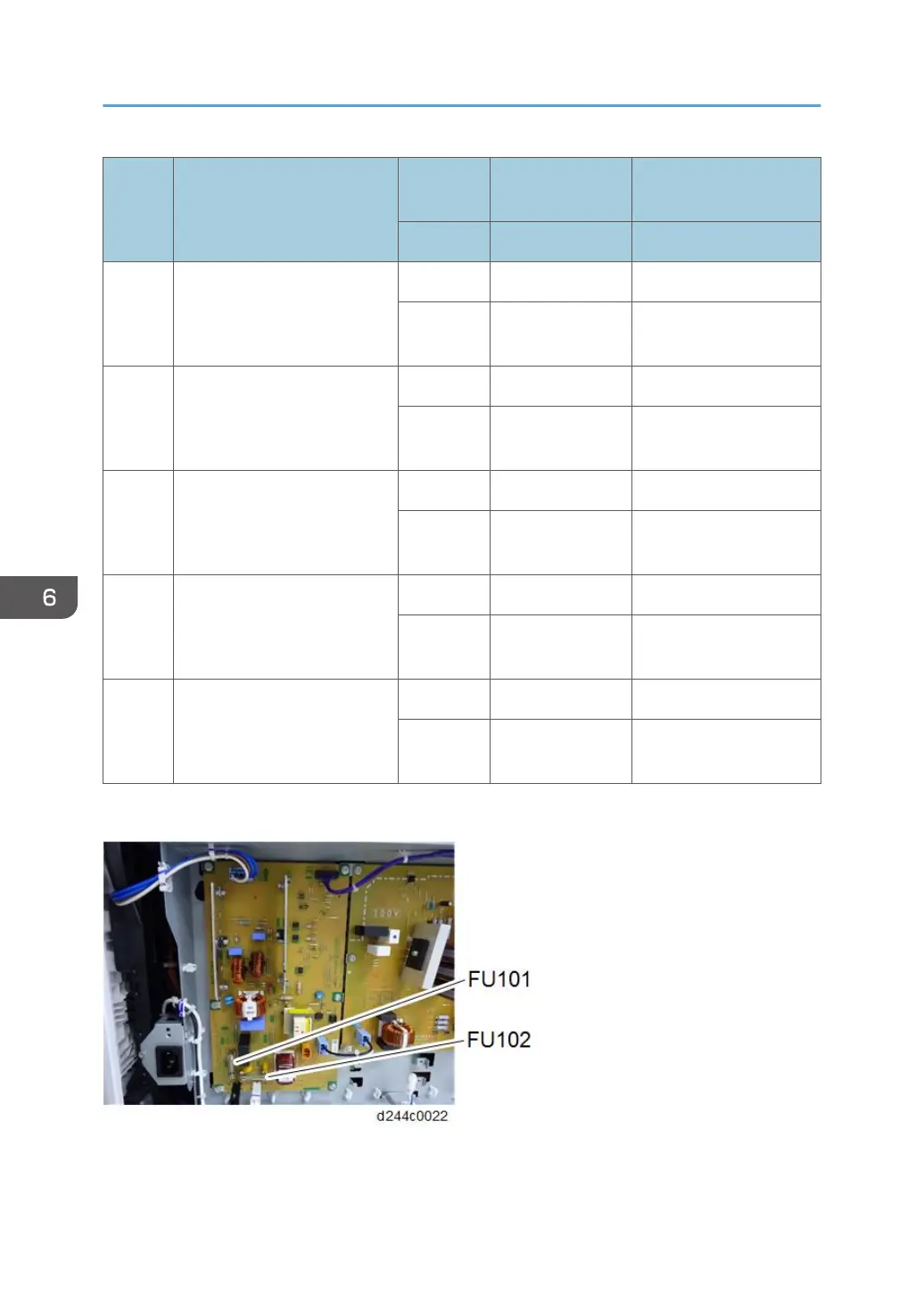

Fuse position
6. Troubleshooting
1058
