Ricoh MP C2504 - Registration Sensor

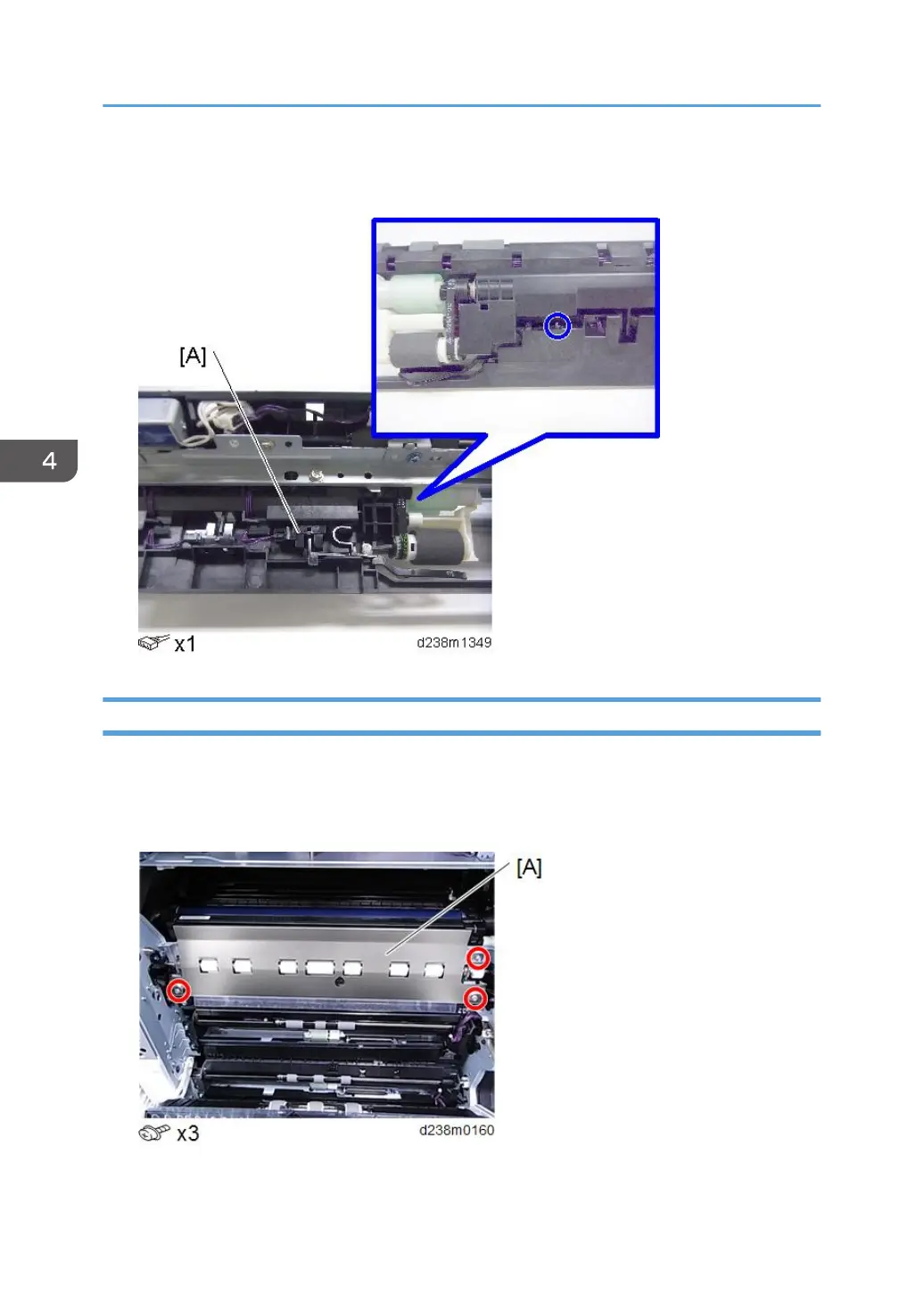

2. While pressing the tab enclosed by the blue circle, remove the paper end sensor [A]
(Harness×1).
Registration Sensor
1. Open the right door.
2. Paper transfer roller unit (page 495)
3. Inner bracket [A]
4. Replacement and Adjustment
574
