Ricoh MP C2504 - Duplex;Bypass Motor

To Next Page

To Previous Page

4. Main power switch cover (page 416)

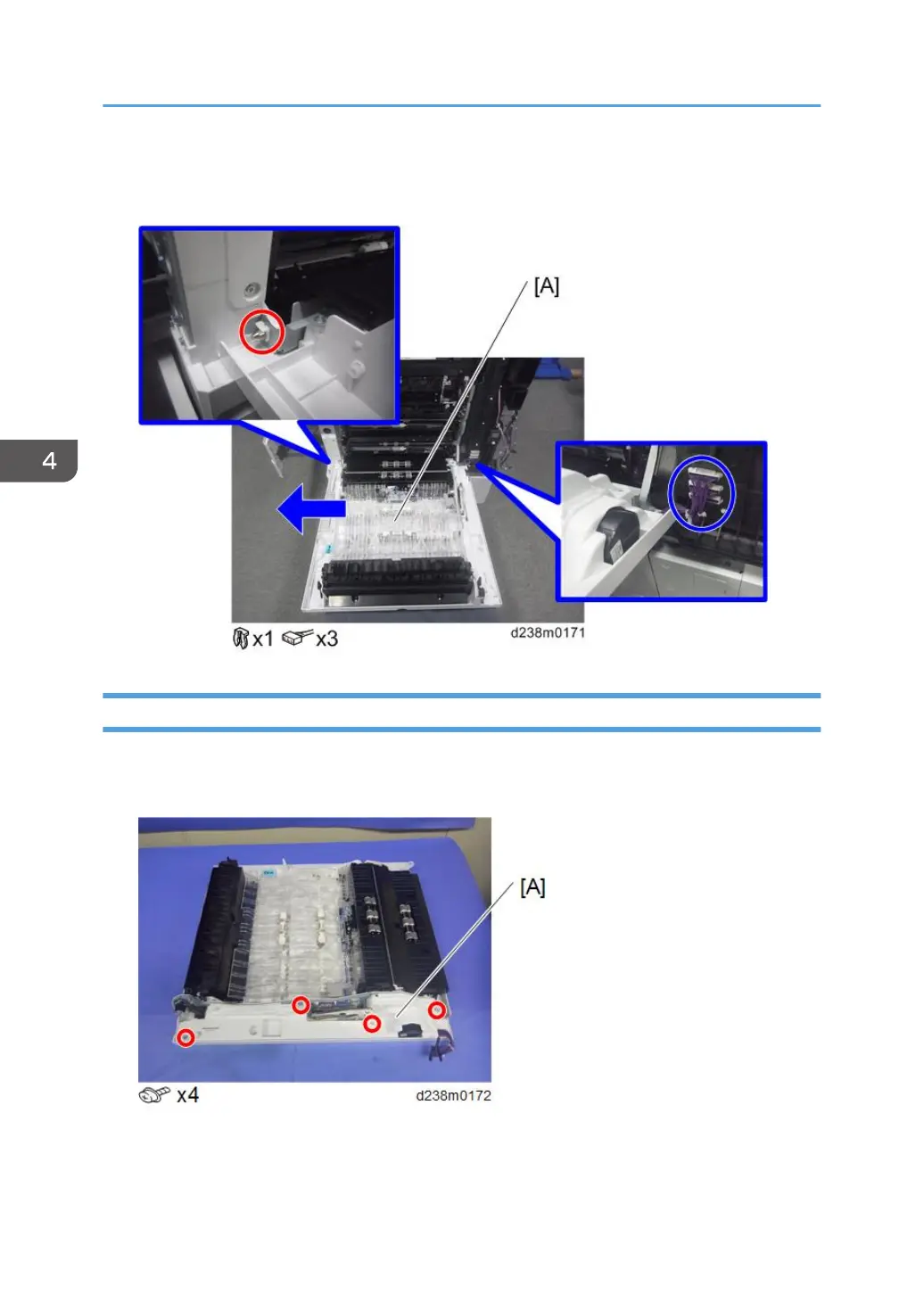

5. Duplex unit [A]

Duplex/Bypass Motor

1. Duplex unit (page 591)

2. Harness guide [A]

4. Replacement and Adjustment

592
