Ricoh MP C2504 - Development Intake Fan

To Next Page

To Previous Page

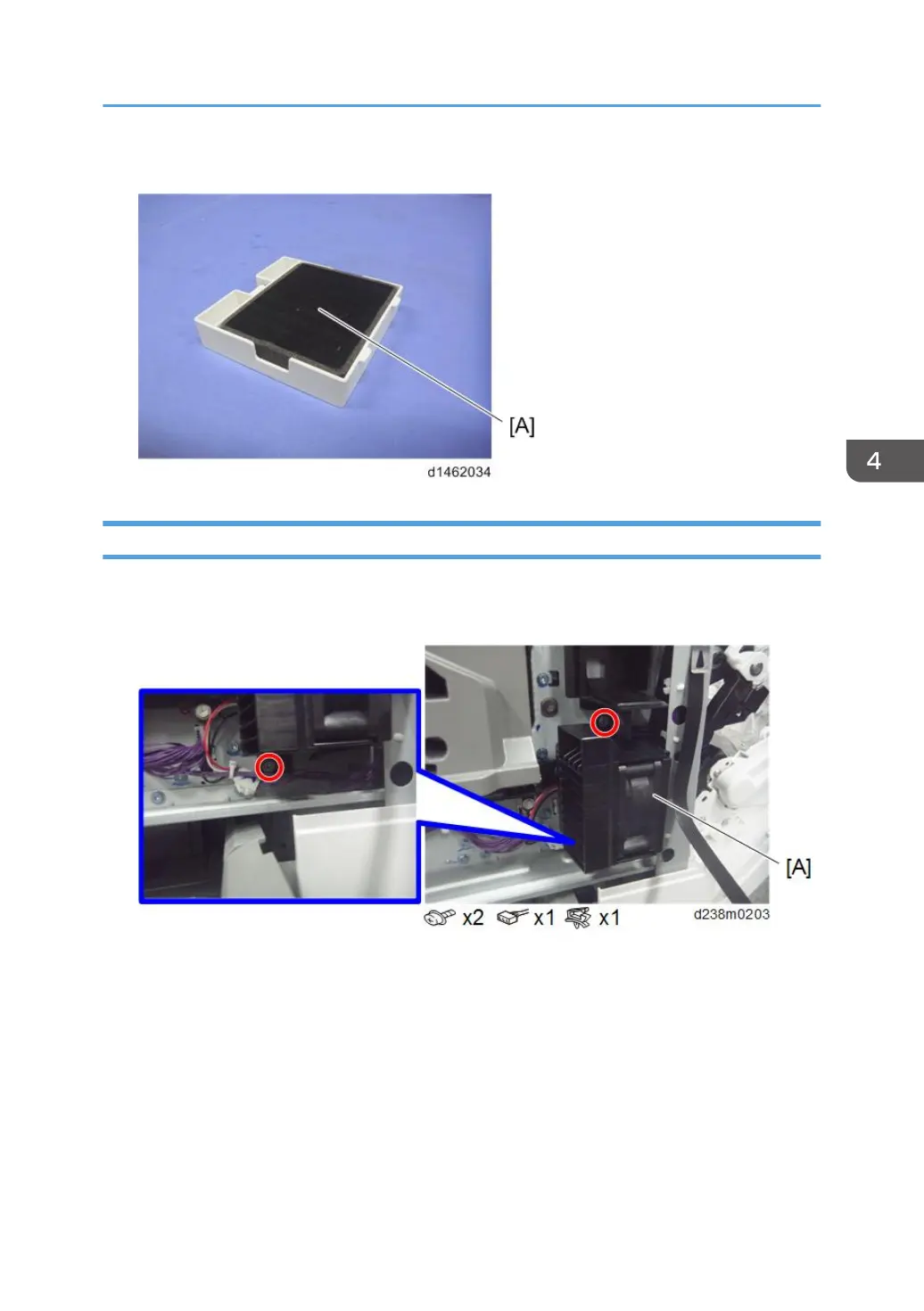

2. Deodorization filter [A]

Development Intake Fan

1. Inner lower cover (page 421)

2. Development intake fan unit [A]

Fans/Filters

627
