Ricoh MP C2504 - Front Cover

To Next Page

To Previous Page

No. Cover name

3 Inner lower cover

Front Cover

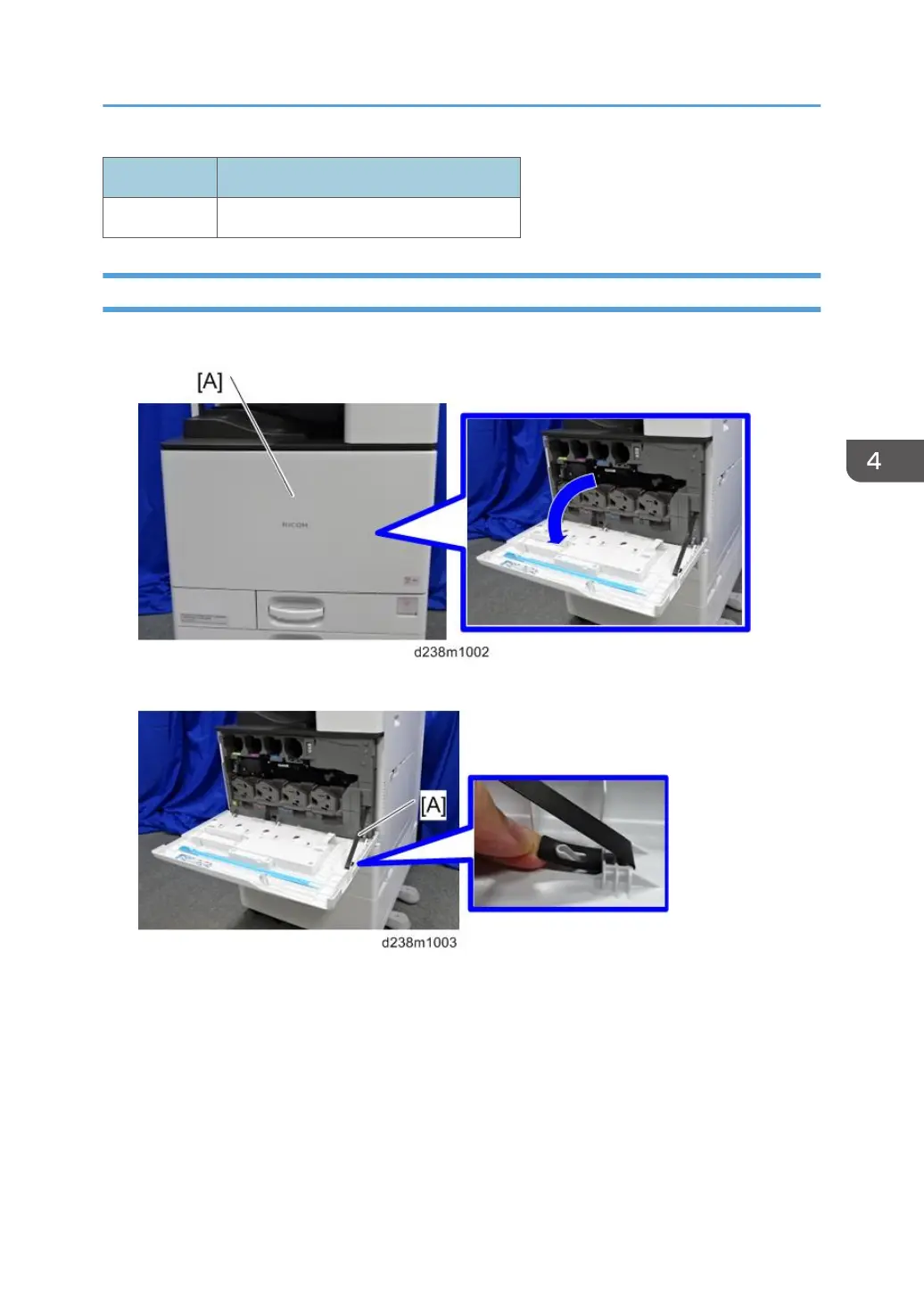

1. Open the front cover [A].

2. Unhook the belt’s tip and detach the belt [A].

Exterior Covers

405
