Ricoh MP C2504 User Manual

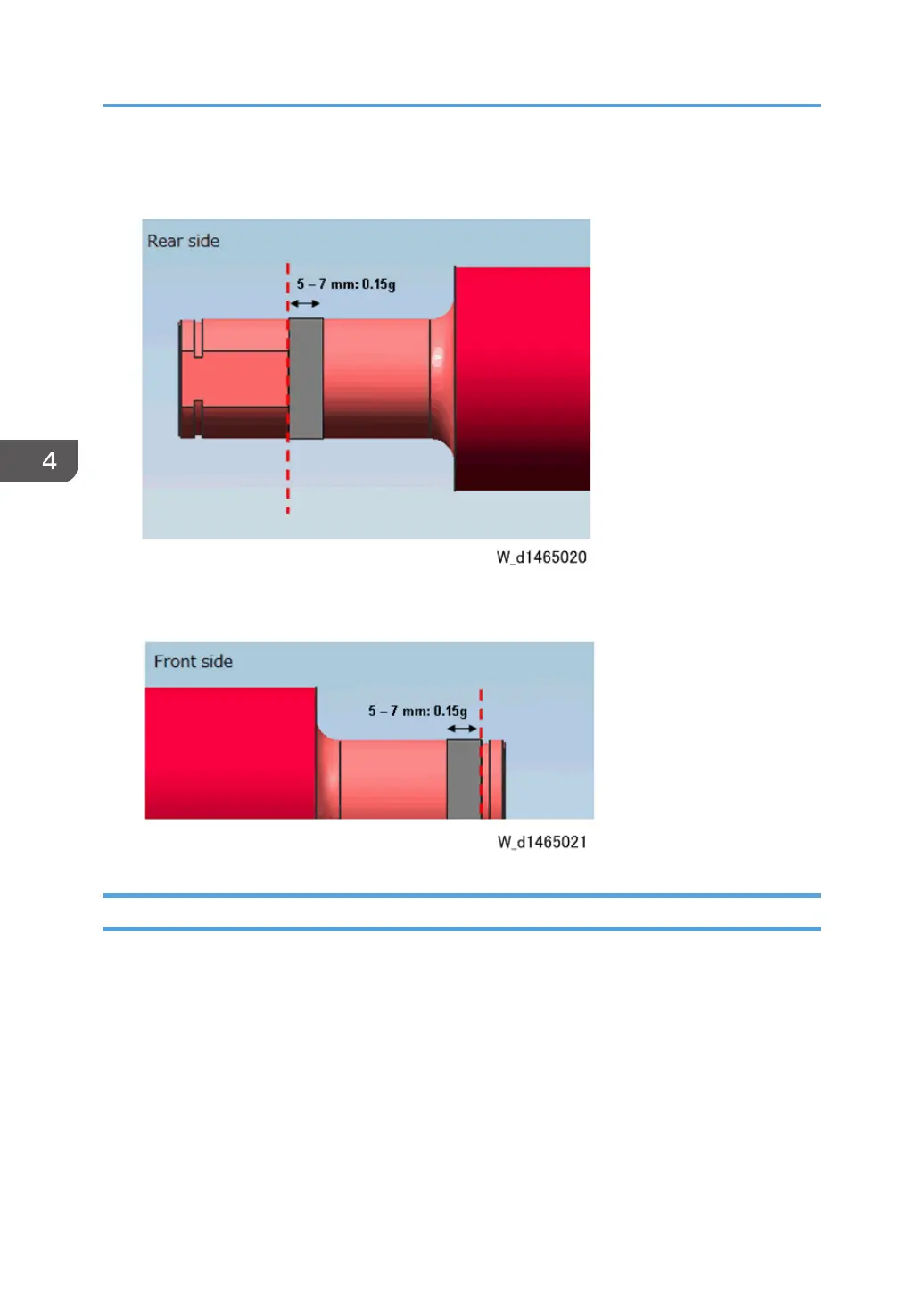

3. Apply the grease (FLUOTRIBO MG GREASE) to the rear shaft of the pressure roller at
5-7mm from the cut edge.
4. Apply the grease (FLUOTRIBO MG GREASE) to the front shaft of the pressure roller at
5-7mm from the C-ring notch.
Fusing Sleeve Thermostat Unit
1. Fusing upper cover (page 544)
2. Fusing lower cover (page 545)
4. Replacement and Adjustment
552

Ricoh MP C2504 Specifications

General

Print Technology	Laser
Functions	Print, Copy, Scan, Fax
Print Resolution	1200 x 1200 dpi
Scan Type	Flatbed, ADF
Max Scan Resolution	600 x 600 dpi
Copy Resolution	600 x 600 dpi
Max Paper Size	A3
Duplex Printing	Yes
Memory (RAM)	2 GB
Print Speed	25 ppm (A4)
Copy Speed	25 cpm (A4)
Fax Resolution	200 x 200 dpi
Paper Capacity	1200 sheets
Connectivity	USB, Ethernet, Wi-Fi
Dimensions	587 x 685 x 913 mm
Control Panel	9-inch Smart Operation Panel
