Ricoh MP C2504 - Reverse Motor

To Next Page

To Previous Page

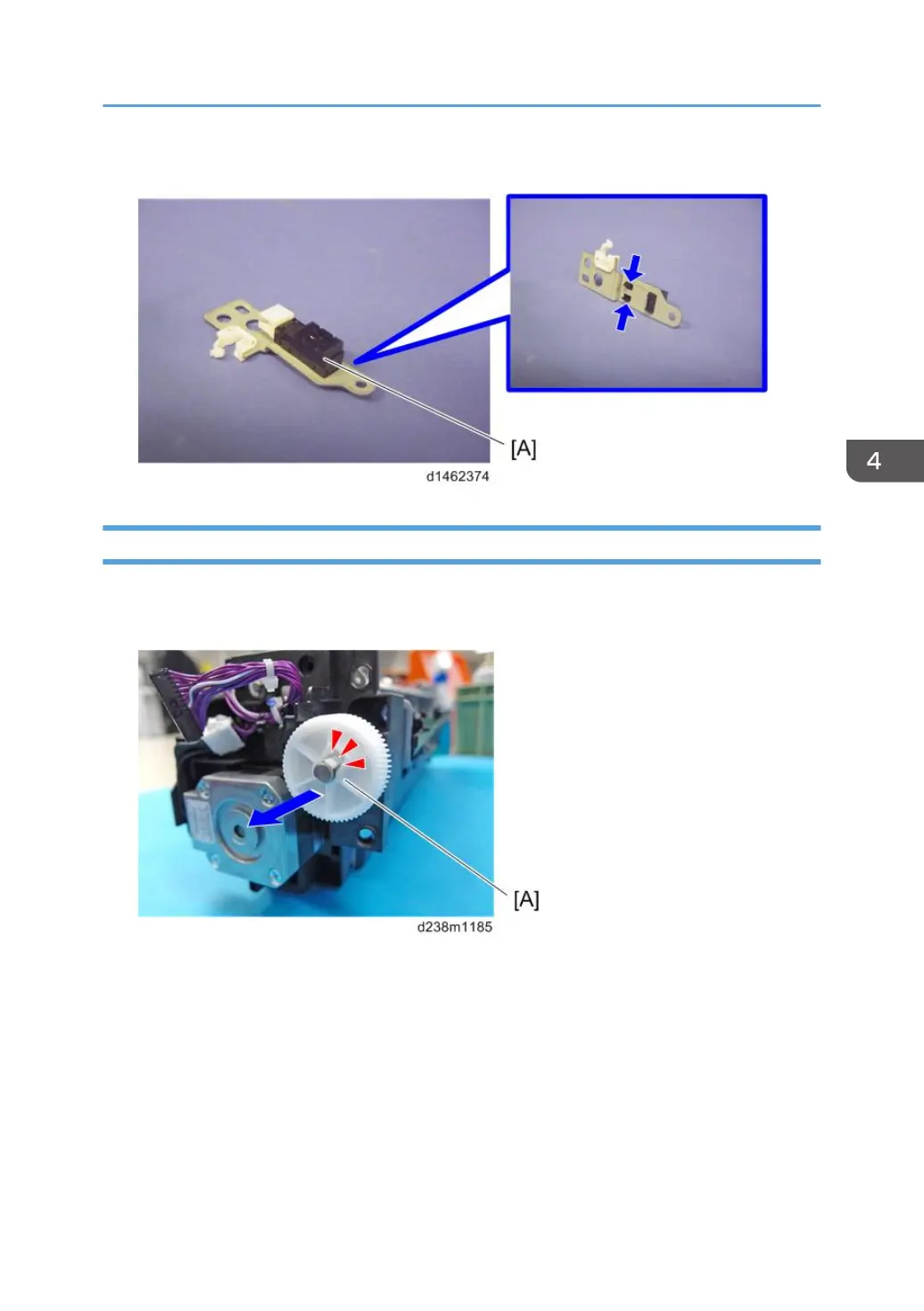

3. Reverse sensor [A]

Reverse Motor

1. Paper exit unit (page 557)

2. Gear [A] (Tab x1)

Paper Exit

561
