Ricoh MP C2504 - Curl Correction Position; Position for no Curl Correction

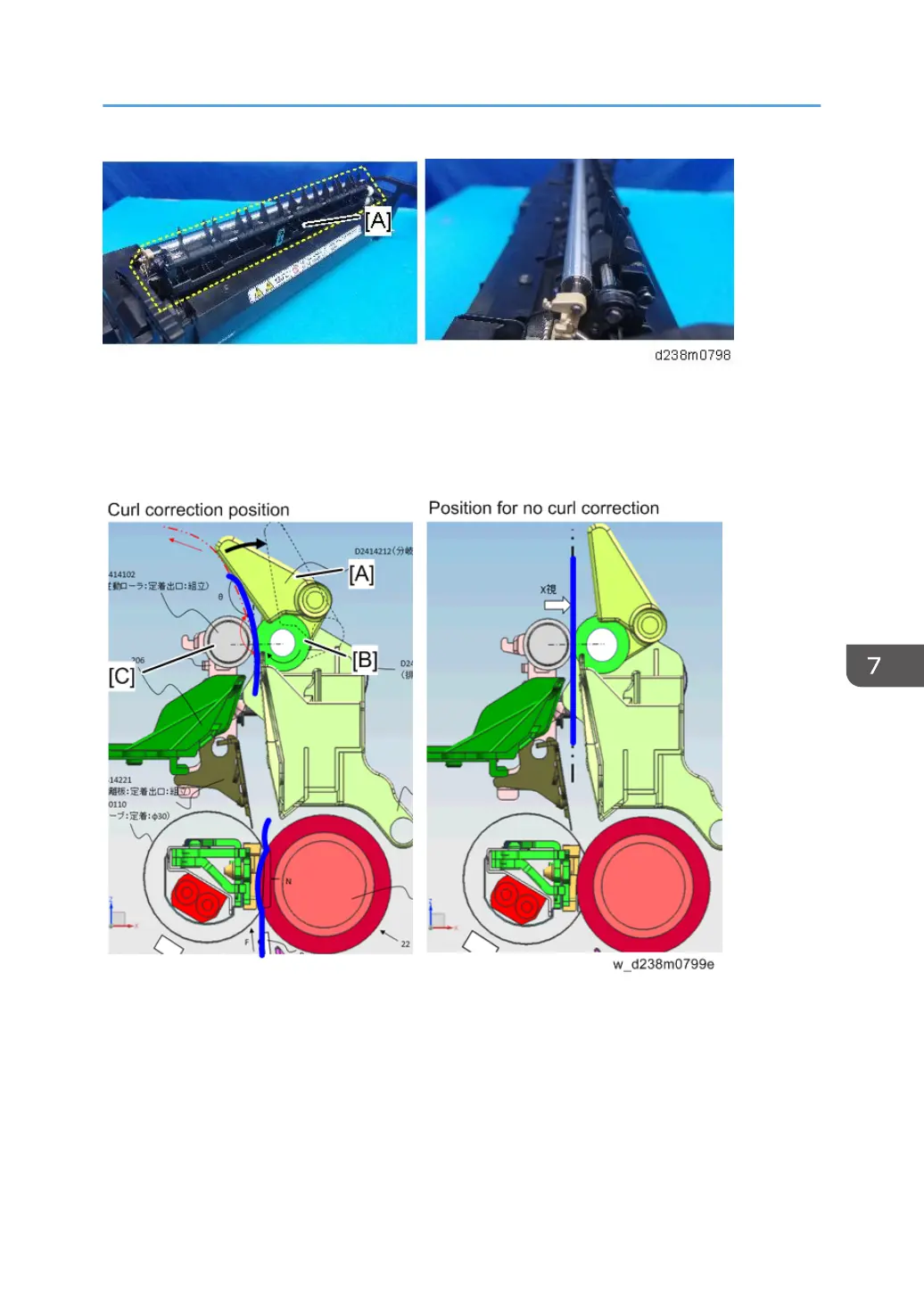

Curling is reduced by bending in the reverse direction of the curl created at the fuser nip and forcibly
adding resilience using the fusing exit roller [B], fuser exit driven roller [C], and fusing junction gate [A],
located at the fuser nip exit.
The fusing junction gate is retracted for duplex printing/thick paper to prevent image smearing.
Drive
The fusing junction gate [C] is rotated via the arm [B] by turning ON the fusing exit drive solenoid
[A] located on the main machine side.
When the solenoid is ON, the fusing junction gate is at no curl correction position.
Fusing
1195
