Ricoh MP C2504 - Installation Procedure

To Next Page

To Previous Page

Installation Procedure

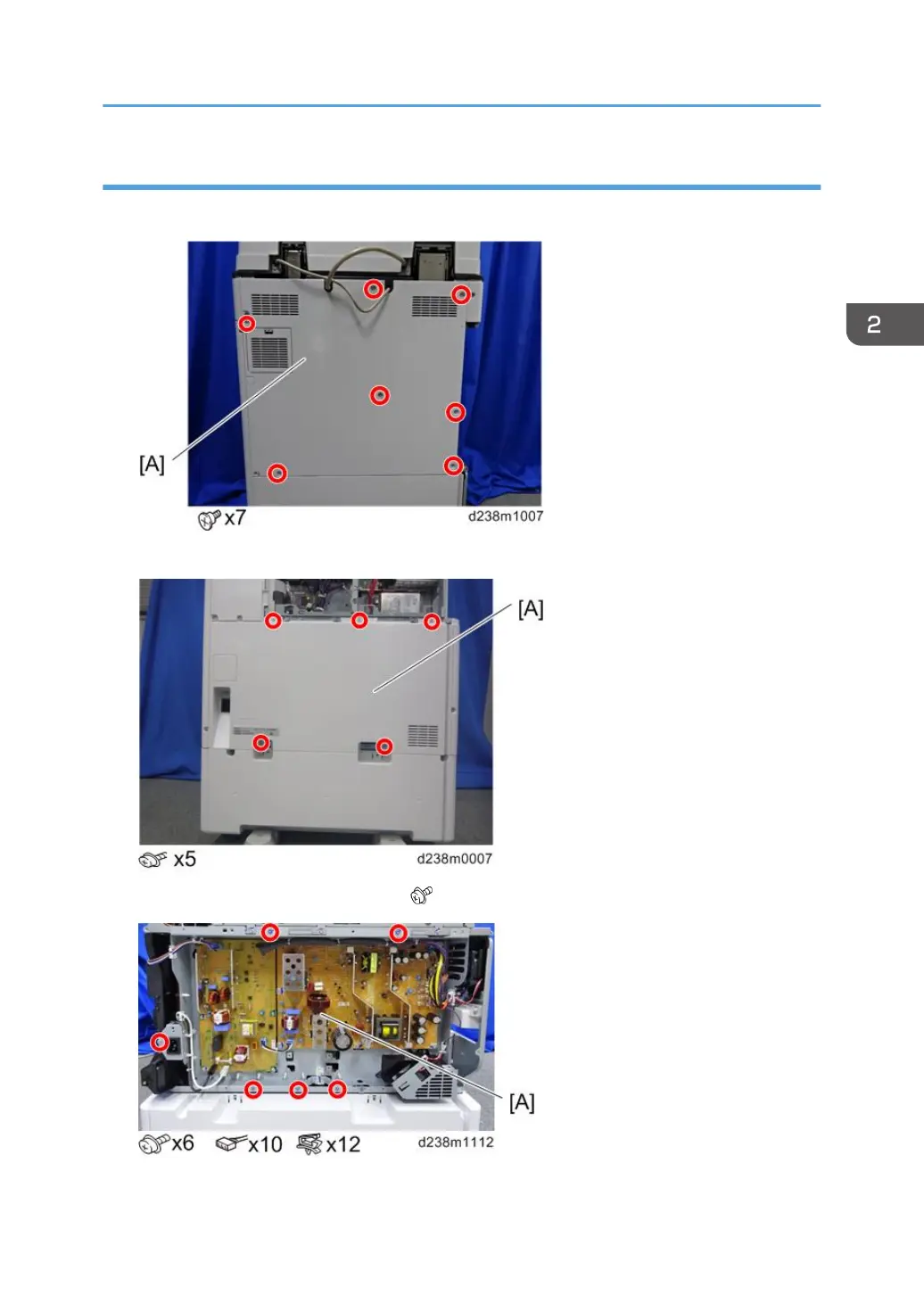

1. Remove the rear cover [A].

2. Remove the rear lower cover [A].

3. Remove the power supply box [A] ( x6, Among them, tapping screw x1)

Anti-Condensation Heater (Scanner, PCDU)

109
