Ricoh MP C2504 - Installation Flow Chart

To Next Page

To Previous Page

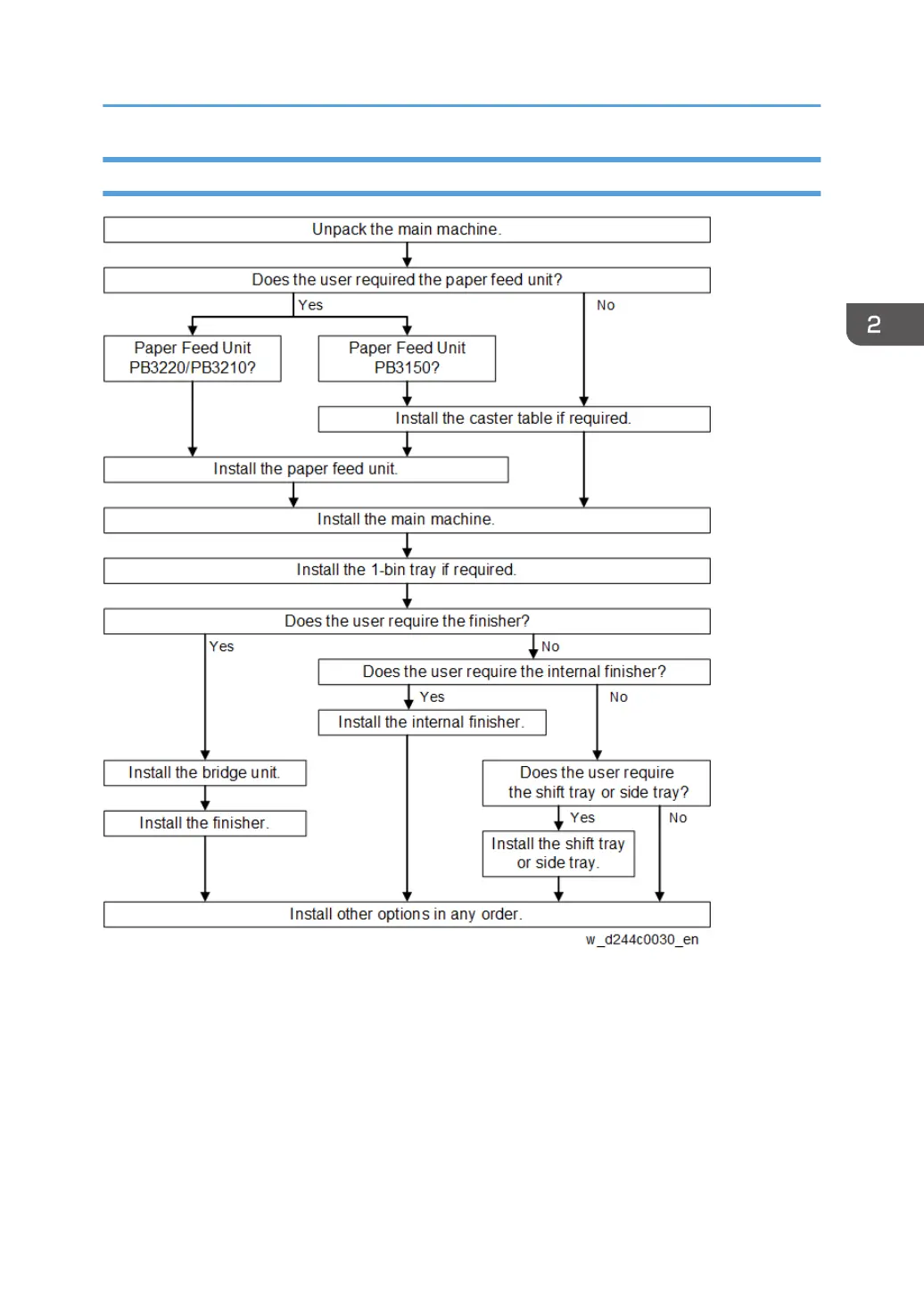

Installation Flow Chart

Put the machine on the paper feed tray (1 tray/2 trays) first, then install the machine and other options.

You need Paper Feed Unit PB3220/PB3210 (D787) to align the paper transport path if you want to

install Booklet Finisher SR3220 (D3B9).

Main Machine Installation
