Ricoh MP C2504 - Fusing Exit Drive Solenoid

To Next Page

To Previous Page

3. Pressure roller HP sensor [A]

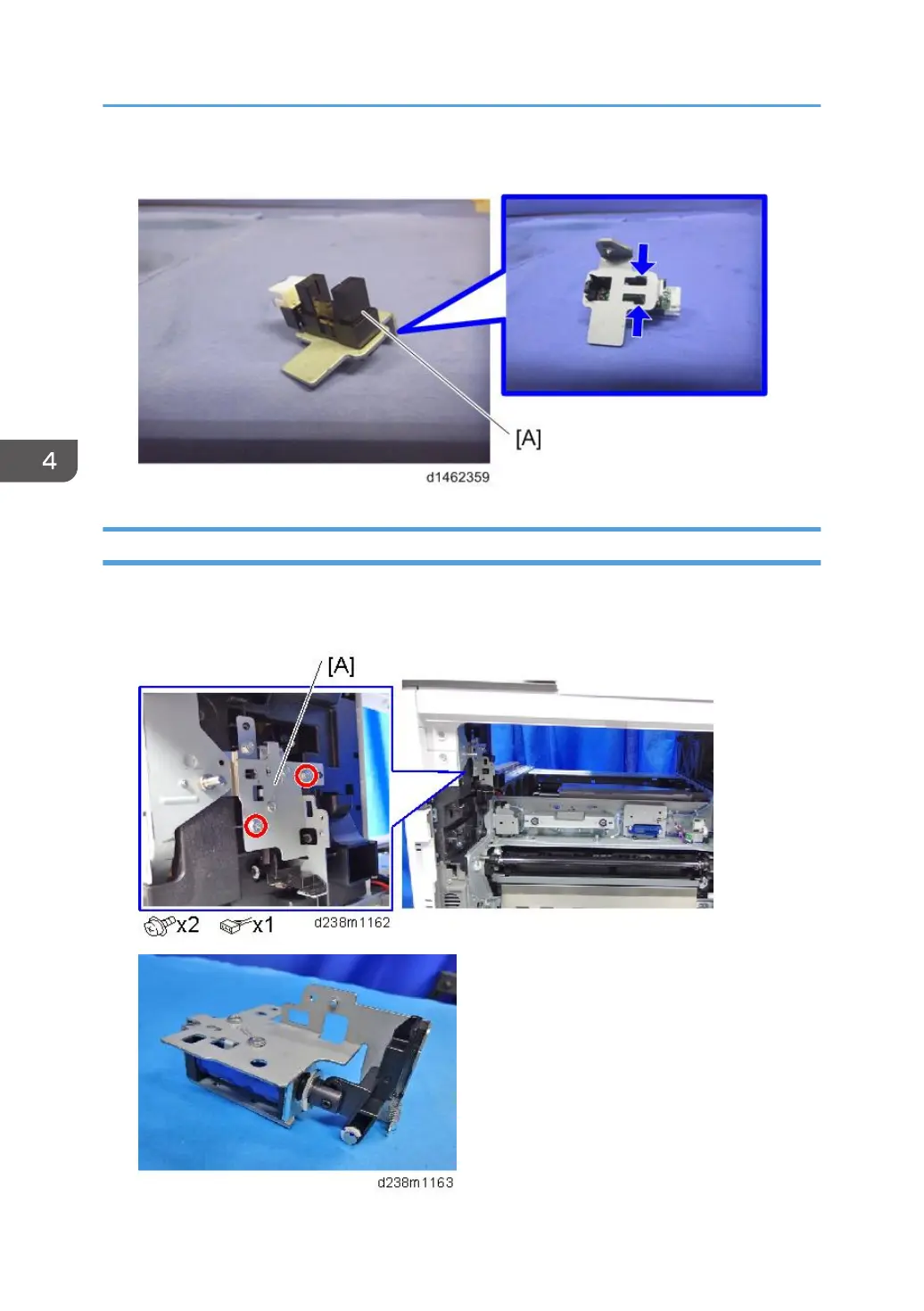

Fusing Exit Drive Solenoid

1. Paper exit unit (page 557)

2. Fusing exit drive solenoid [A].

4. Replacement and Adjustment

556
