Ricoh MP C2504 - Bcu

BCU
• The FFC connector has a lock mechanism. Do not use force to pull it out.

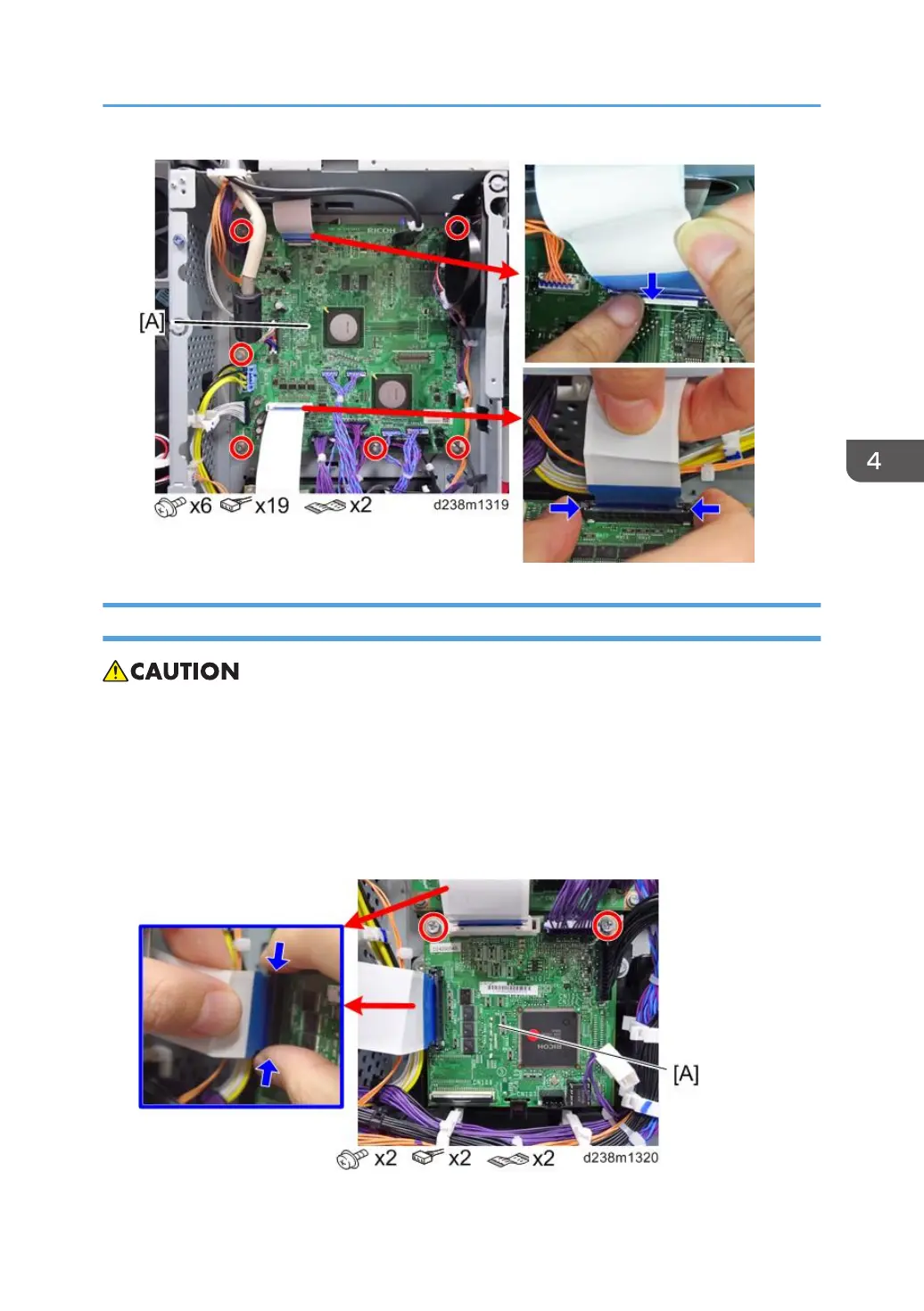

1. Controller box cover (page 600)
2. BCU [A]
Disconnect the FFCs while pressing the lock release levers on its sides. Disconnecting the FFC
without releasing the lock may cause the FFC or connector to be damaged, resulting in an SC670
error.
