Ricoh MP C2504 - Paper Exit; Pressure Release Motor; Duplex Entrance Motor

To Next Page

To Previous Page

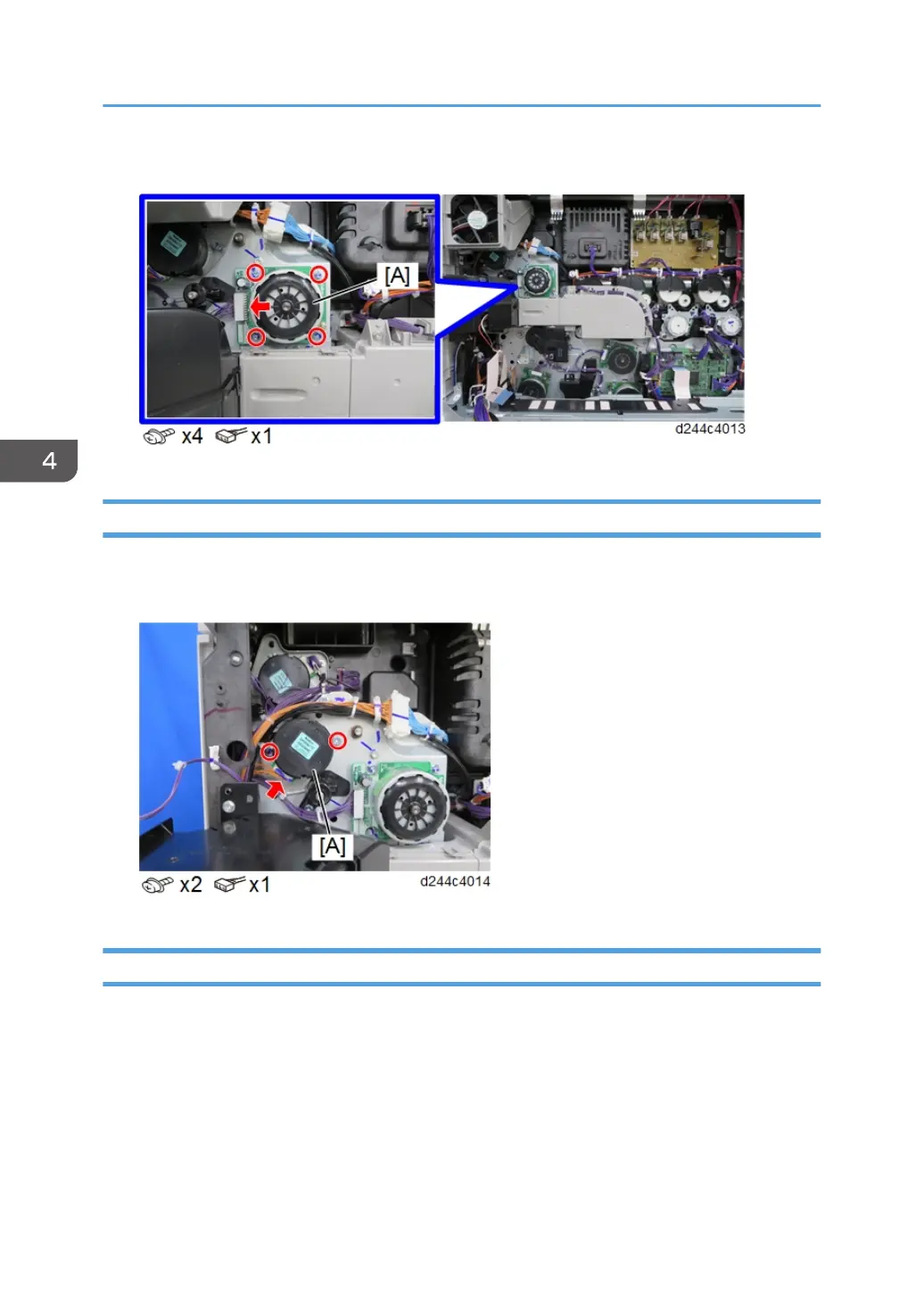

2. Fusing motor [A]

Paper Exit/ Pressure Release Motor

1. Fusing exhaust fan unit (page 629)

2. Paper exit / Pressure release motor [A]

Duplex Entrance Motor

1. Paper exit unit (page 557)

2. Fusing exhaust fan unit (page 629)

4. Replacement and Adjustment

520
