Ricoh MP C2504 - Ozone Exhaust Fan; Paper Exit Cooling Fan

To Next Page

To Previous Page

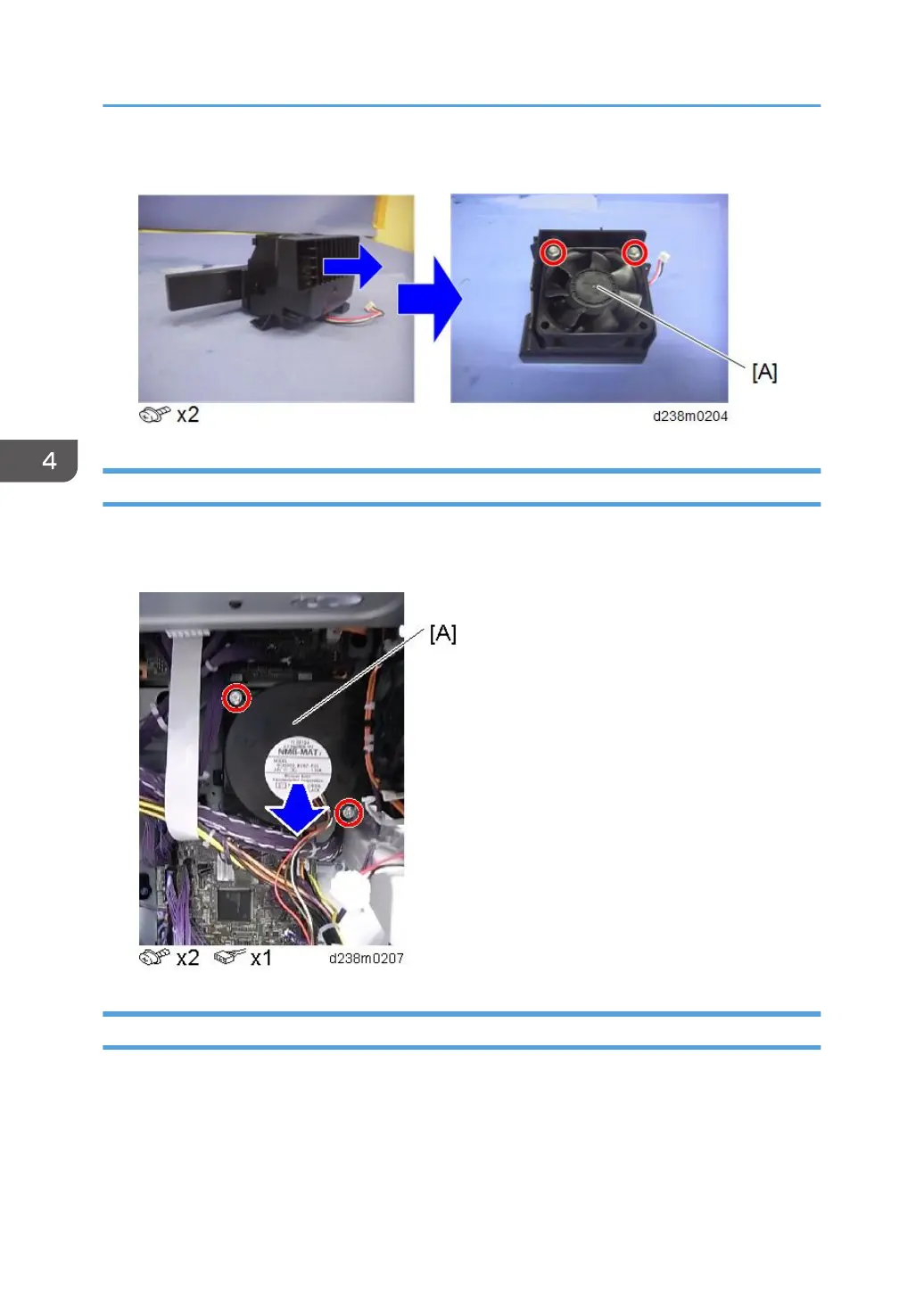

3. Development intake fan [A]

Ozone Exhaust Fan

1. Power supply box (page 620)

2. Ozone exhaust fan [A]

Paper Exit Cooling Fan

1. Front upper cover (page 413)

4. Replacement and Adjustment

628
