Bypass Tray Unit

Bypass Tray

1. Open the right door.

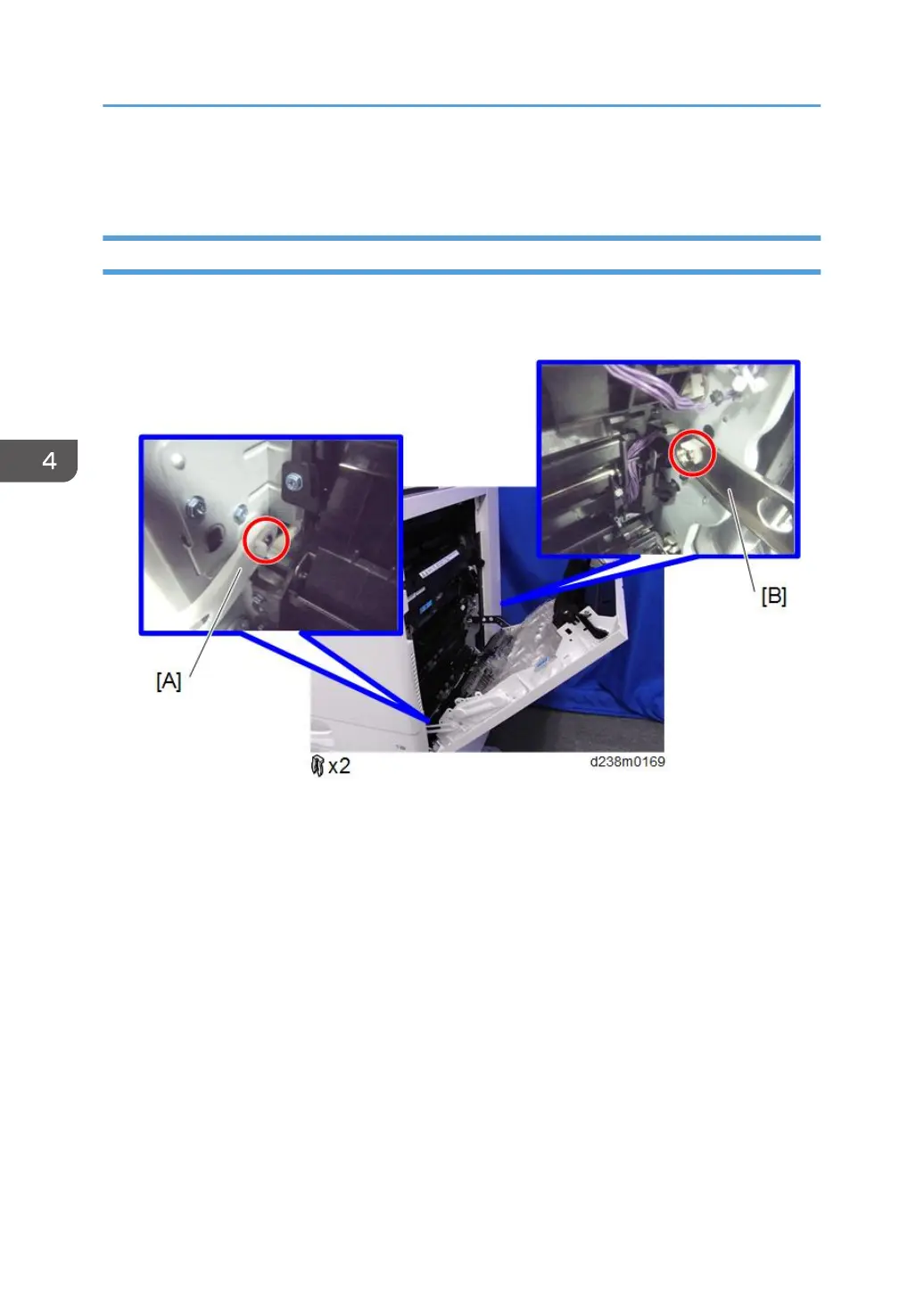

2. Arm [A][B]

3. Open the right door wide.

4. Replacement and Adjustment

576
