Ricoh MP C2504 User Manual

Fusing
Overview

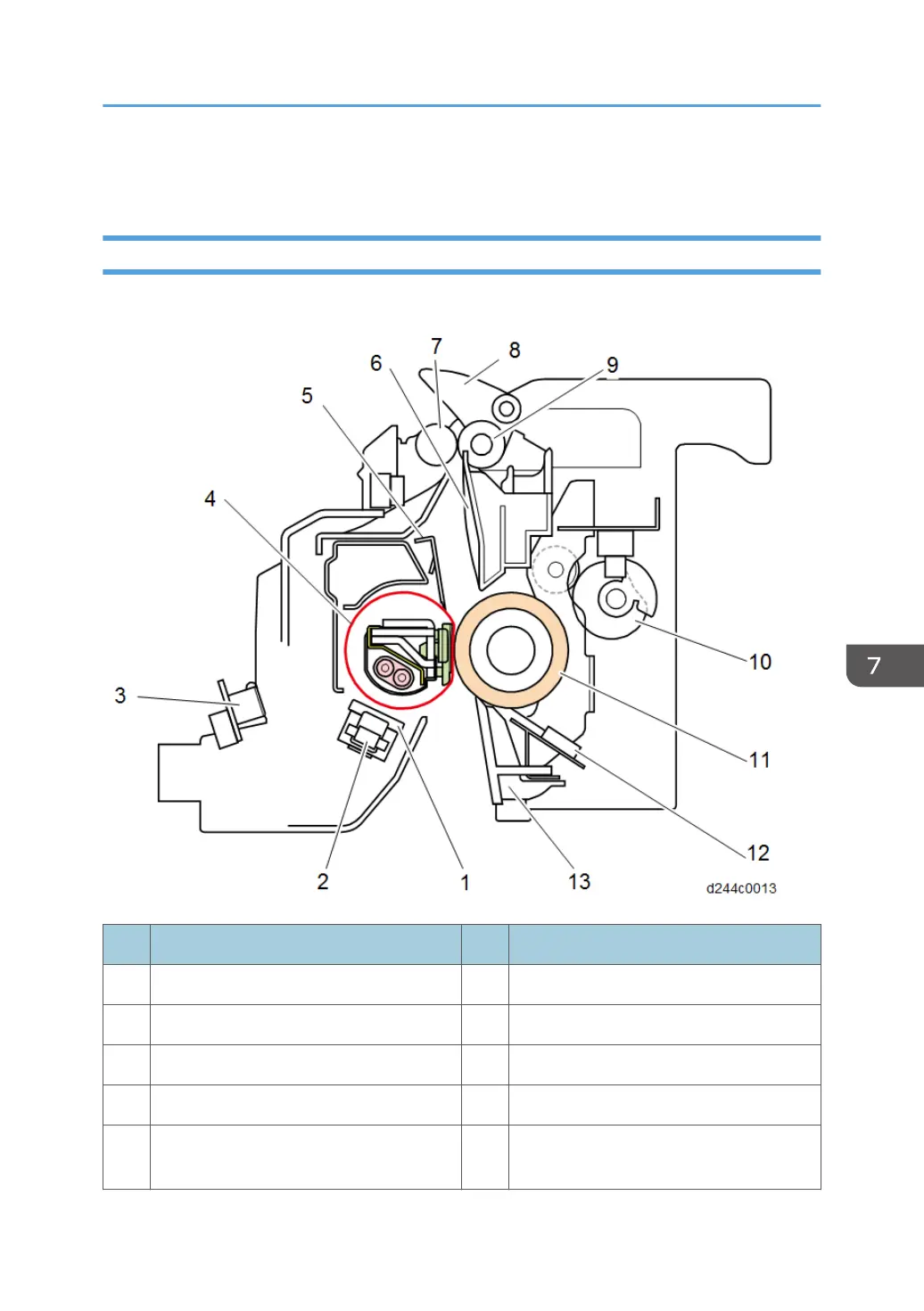

This machine employs a QSU fusing system wherein a lamp emits light to heat a sleeve belt.
No. Description No. Description
1 Fusing sleeve thermostats 8 Fusing junction gate
2 Non-contact thermistor 9 Fusing exit roller (drive)
3 Thermopile 10 Pressure roller drive cam
4 Fusing sleeve belt 11 Pressure roller
5 Stripper Plate 12
Pressure roller thermistors: Center, Edge,
and Full-bleed edge
Fusing
1187

Ricoh MP C2504 Specifications

General

Print Technology	Laser
Functions	Print, Copy, Scan, Fax
Print Resolution	1200 x 1200 dpi
Scan Type	Flatbed, ADF
Max Scan Resolution	600 x 600 dpi
Copy Resolution	600 x 600 dpi
Max Paper Size	A3
Duplex Printing	Yes
Memory (RAM)	2 GB
Print Speed	25 ppm (A4)
Copy Speed	25 cpm (A4)
Fax Resolution	200 x 200 dpi
Paper Capacity	1200 sheets
Connectivity	USB, Ethernet, Wi-Fi
Dimensions	587 x 685 x 913 mm
Control Panel	9-inch Smart Operation Panel
