Ricoh MP C2504 - Isolation Diagram of SC663, 664, 665, 667, 668, and 670-01

To Next Page

To Previous Page

8. Switch the power OFF and ON.

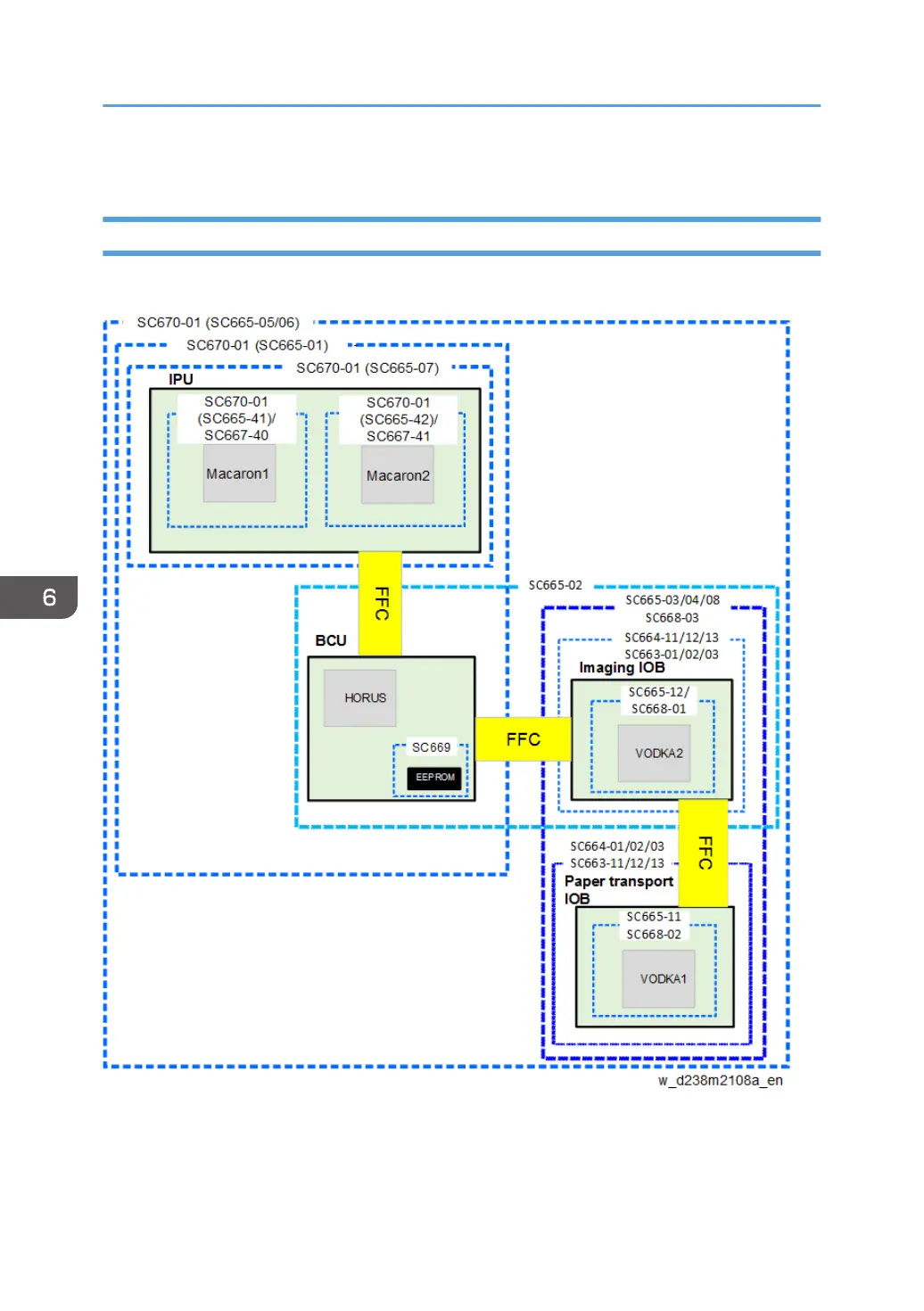

Isolation Diagram of SC663, 664, 665, 667, 668, and 670-01

The modules considered to be the cause of SC663, 664, 665, 667, 668 and 670-01 are as follows.

6. Troubleshooting

976
