Ricoh MP C2504 User Manual

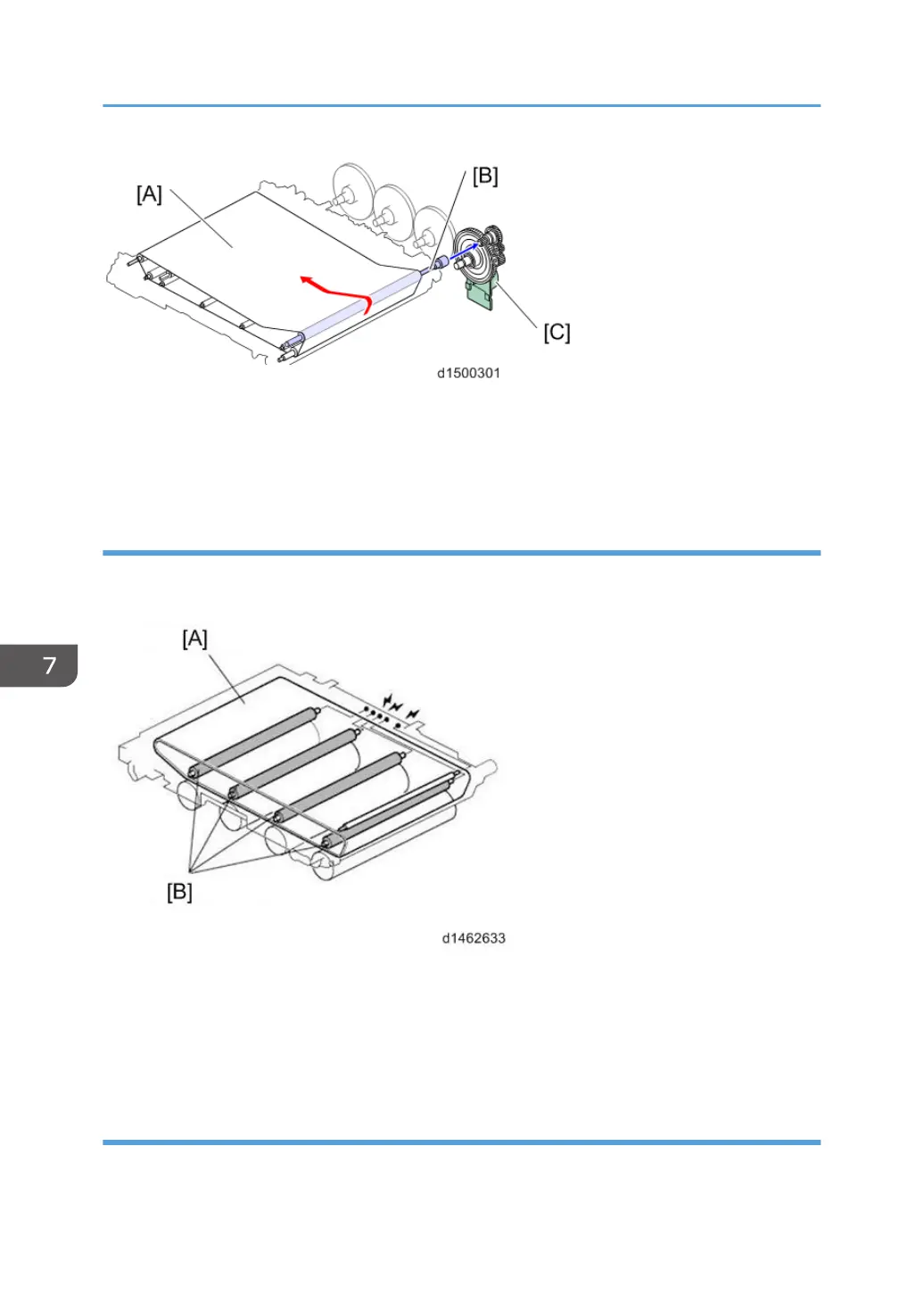

[A]: Image transfer belt
[B]: ITB drive roller
[C]: PCU motor: Black/ ITB drive motor
Transfer Bias
The bias to the Image transfer belt is applied to the image transfer roller of each color from the transfer
power pack.
[A]: Image transfer belt
[B]: Image transfer roller
The 5 springs, in order from the right (double-side unit), consist of "C (cyan), secondary transfer, BK
(black), Y (yellow) and M (magenta)" transfer bias terminals.
ITB Contact and Release
To prevent early deterioration of the color photosensitive drum, the Image transfer belt unit is provided
with a contact/separation mechanism and, during monochrome printing, separation of the image
7. Detailed Descriptions
1154

Ricoh MP C2504 Specifications

General

Print Technology	Laser
Functions	Print, Copy, Scan, Fax
Print Resolution	1200 x 1200 dpi
Scan Type	Flatbed, ADF
Max Scan Resolution	600 x 600 dpi
Copy Resolution	600 x 600 dpi
Max Paper Size	A3
Duplex Printing	Yes
Memory (RAM)	2 GB
Print Speed	25 ppm (A4)
Copy Speed	25 cpm (A4)
Fax Resolution	200 x 200 dpi
Paper Capacity	1200 sheets
Connectivity	USB, Ethernet, Wi-Fi
Dimensions	587 x 685 x 913 mm
Control Panel	9-inch Smart Operation Panel
