Ricoh MP C2504 User Manual

Controller Box Cover
1. Rear cover (page 411)

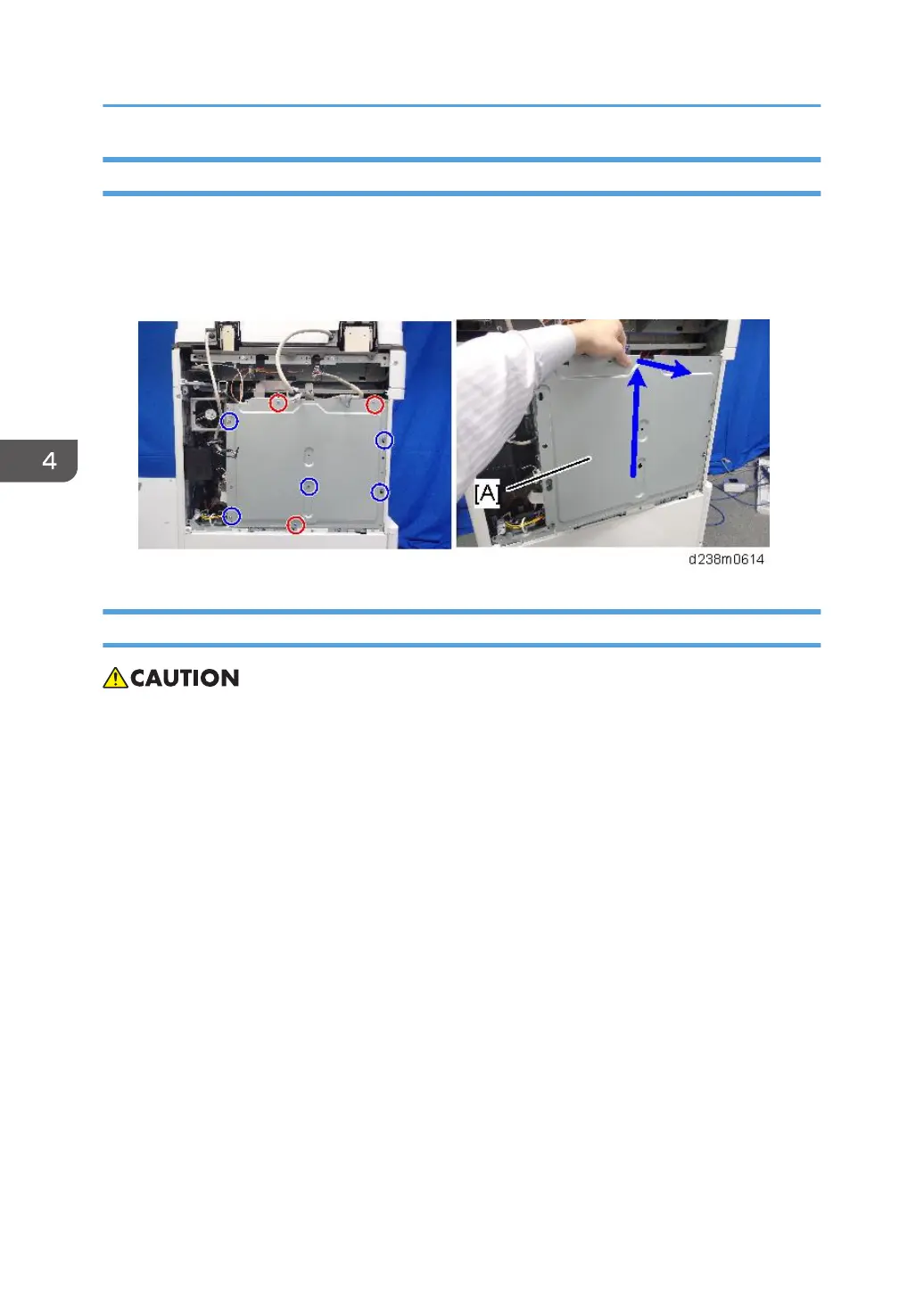

2. Controller box cover [A].
Red circles: Remove / Blue circles: Loosen
IPU
• The FFC connector has a lock mechanism. Do not use force to pull it out.
1. Controller box cover (page 600)
2. IPU [A]
Disconnect the upper FFC (scanner) while pressing the lock release button.
Disconnect the lower FFC while pressing the lock release levers on its sides.
4. Replacement and Adjustment
600
