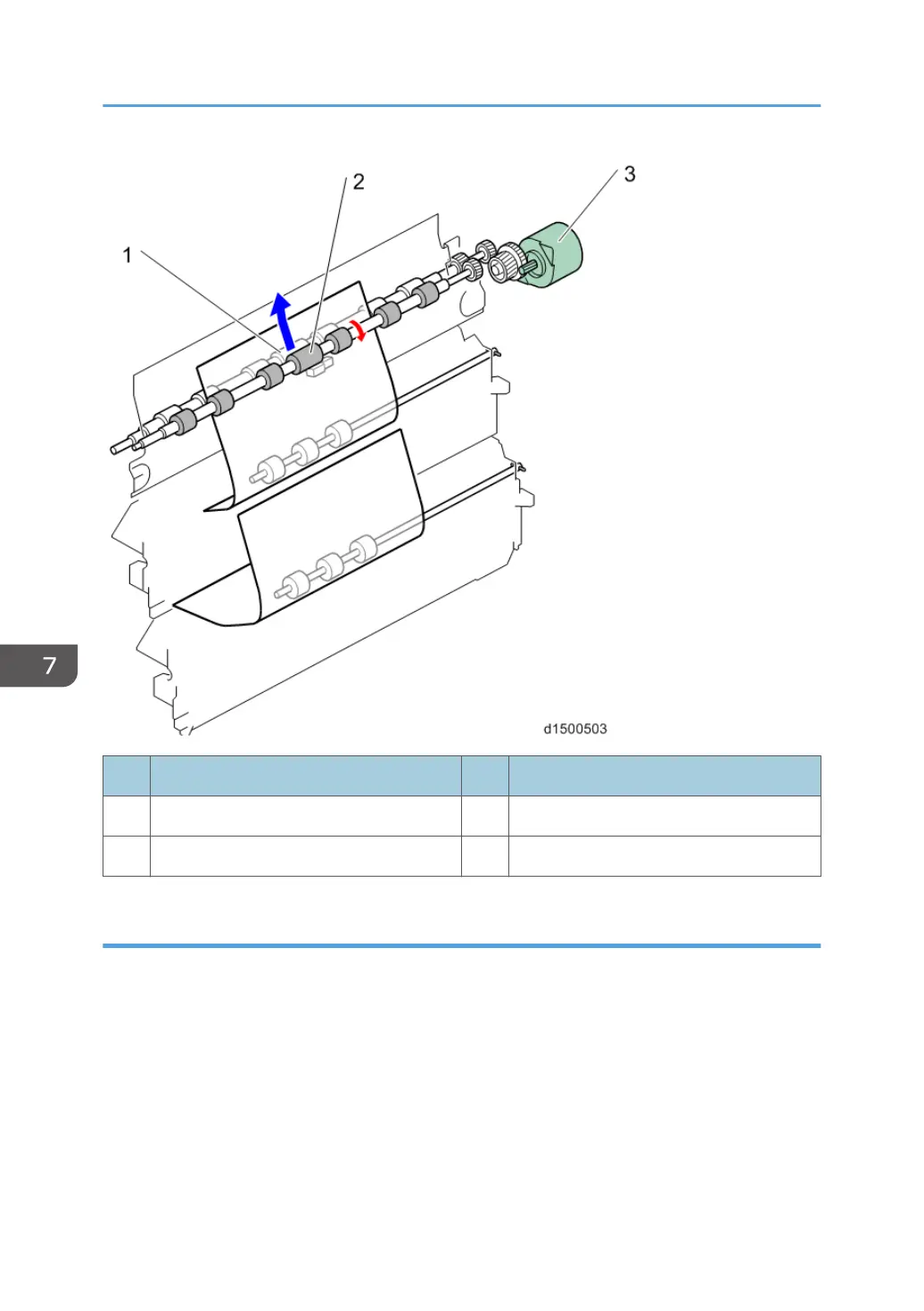

No. Description No. Description
1 Registration roller (Driven) 3 Registration motor
2 Registration roller (Drive)
Paper Dust Removal Mechanism
The registration mechanism removes paper scraps using the paper removal Mylar in contact with the
driven roller (resin). Paper scraps removed by the paper removal Mylar are collected in the paper dust
container.
