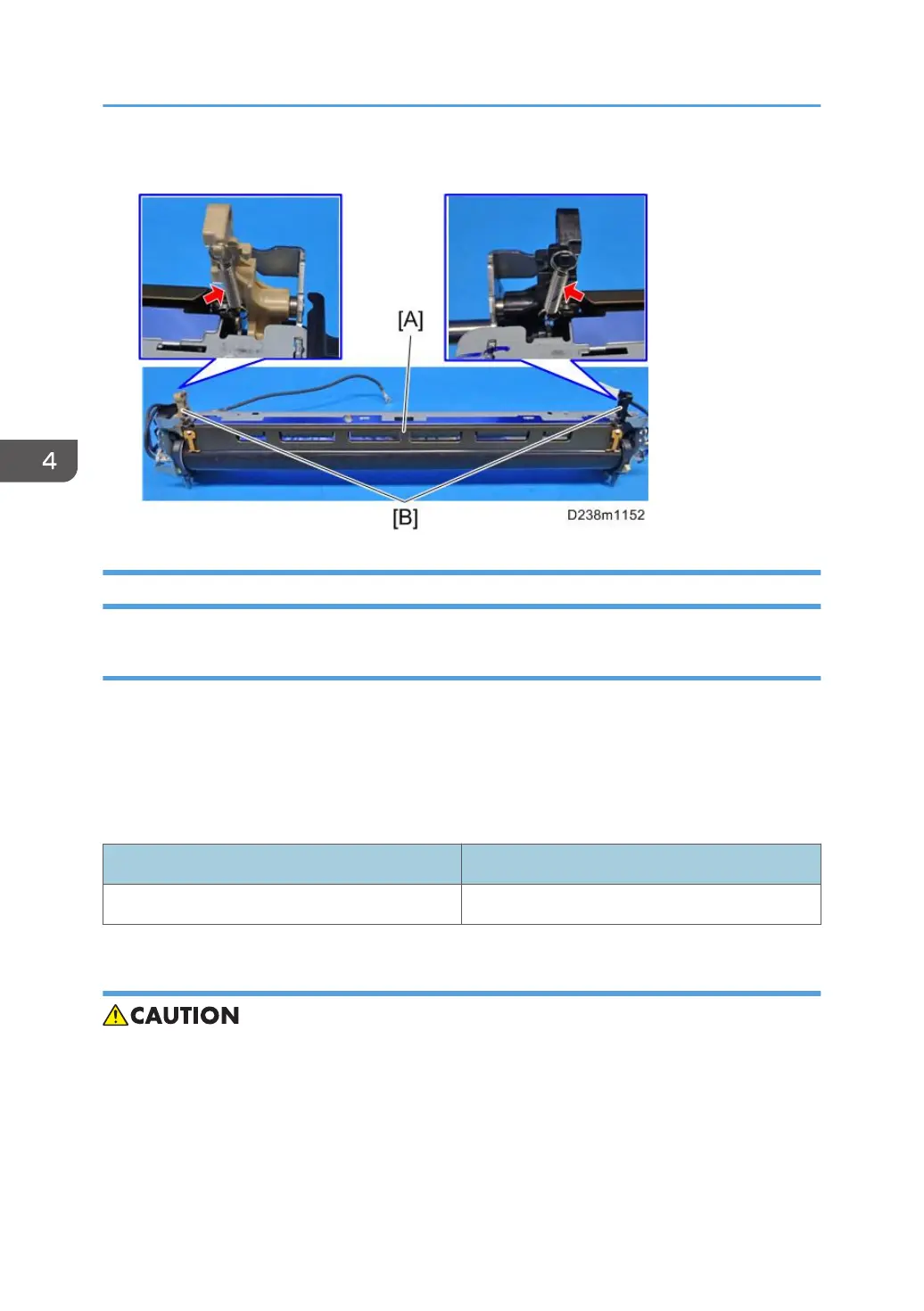

9. Remove the spring, and then remove the separation plate [A] and supports [B].
Pressure Roller
Adjustment before Replacing the Pressure Roller
Before replacing the Pressure Roller, set SP3-701-118 to "1" and switch the power OFF. Then replace
the pressure roller and switch the power ON.
SP3-701 (Manual New Unit Set)
This SP is the new unit detection flag.
0: new unit detection flag OFF, 1: new unit detection flag ON
Item SP
Pressure Roller SP3-701-118
Replacement
• Do not remove or adjust the pressure adjusting screws [A] when replacing the pressure roller.
• The fusing unit is adjusted in the factory to match the hardness of the pressure roller, so that the nip
width will be correct.
4. Replacement and Adjustment
550
