Ricoh MP C2504 - Scanner Leading Edge and Side-To-Side Registration; Scanner Sub-Scan Magnification

Scanner Sub-scan Magnification

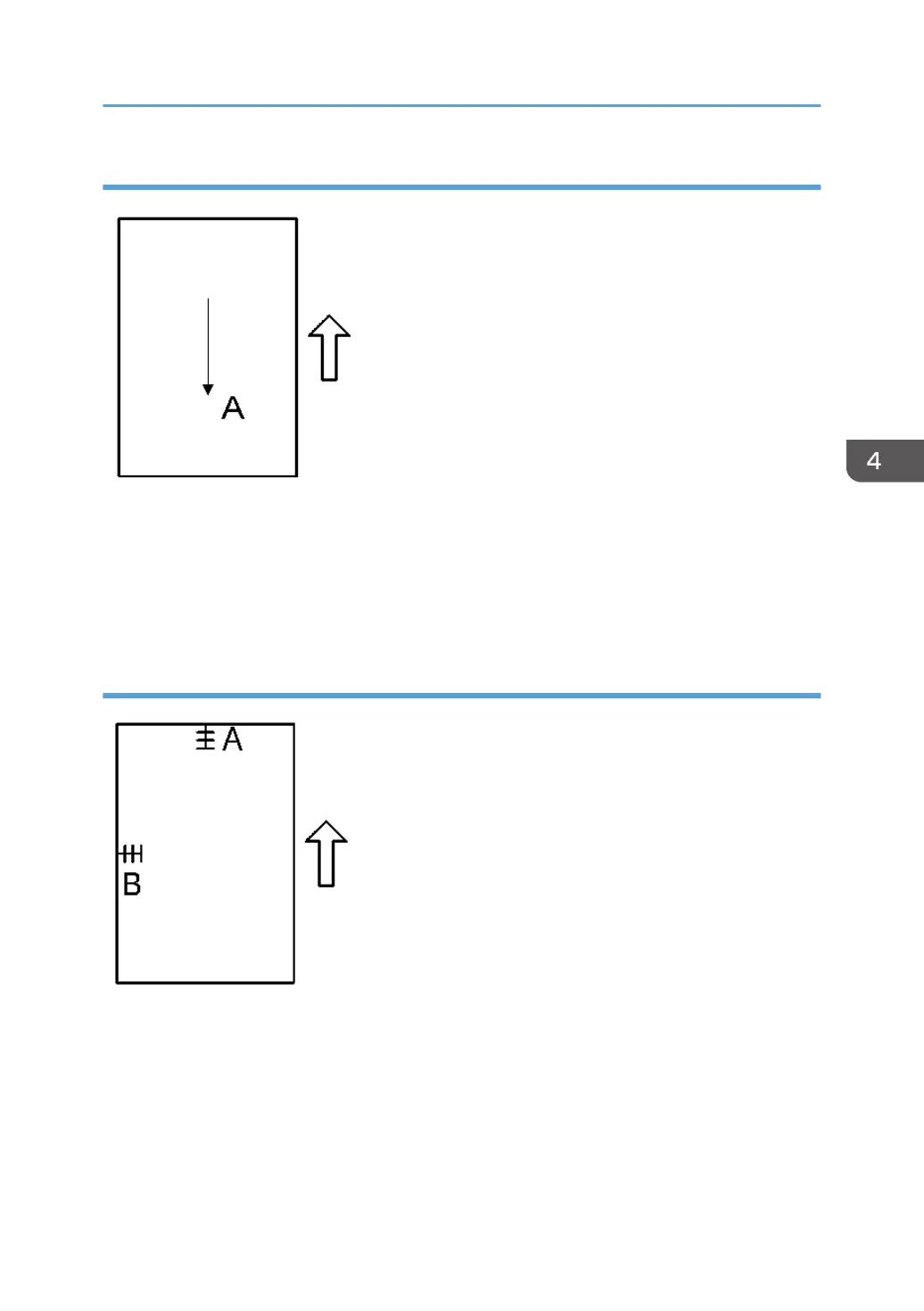

A: Sub-scan magnification
1. Put the test chart on the exposure glass. Then make a copy from one of the feed stations.
2. Check the magnification ratio. Adjust with SP4-008 if necessary.
Standard: ±1.0%.
Scanner Leading Edge and Side-to-side Registration
A: Leading Edge Registration
1. Put the test chart on the exposure glass. Then make a copy from one of the feed stations.
2. Check the leading edge and side-to-side registration. Adjust the following SP modes if necessary.
Standard: 0 ± 2mm for the leading edge registration, 0 ± 2.5mm for the side-to-side registration.
Image Adjustment
635
