Proximity Sensor (Human Detection Sensor)

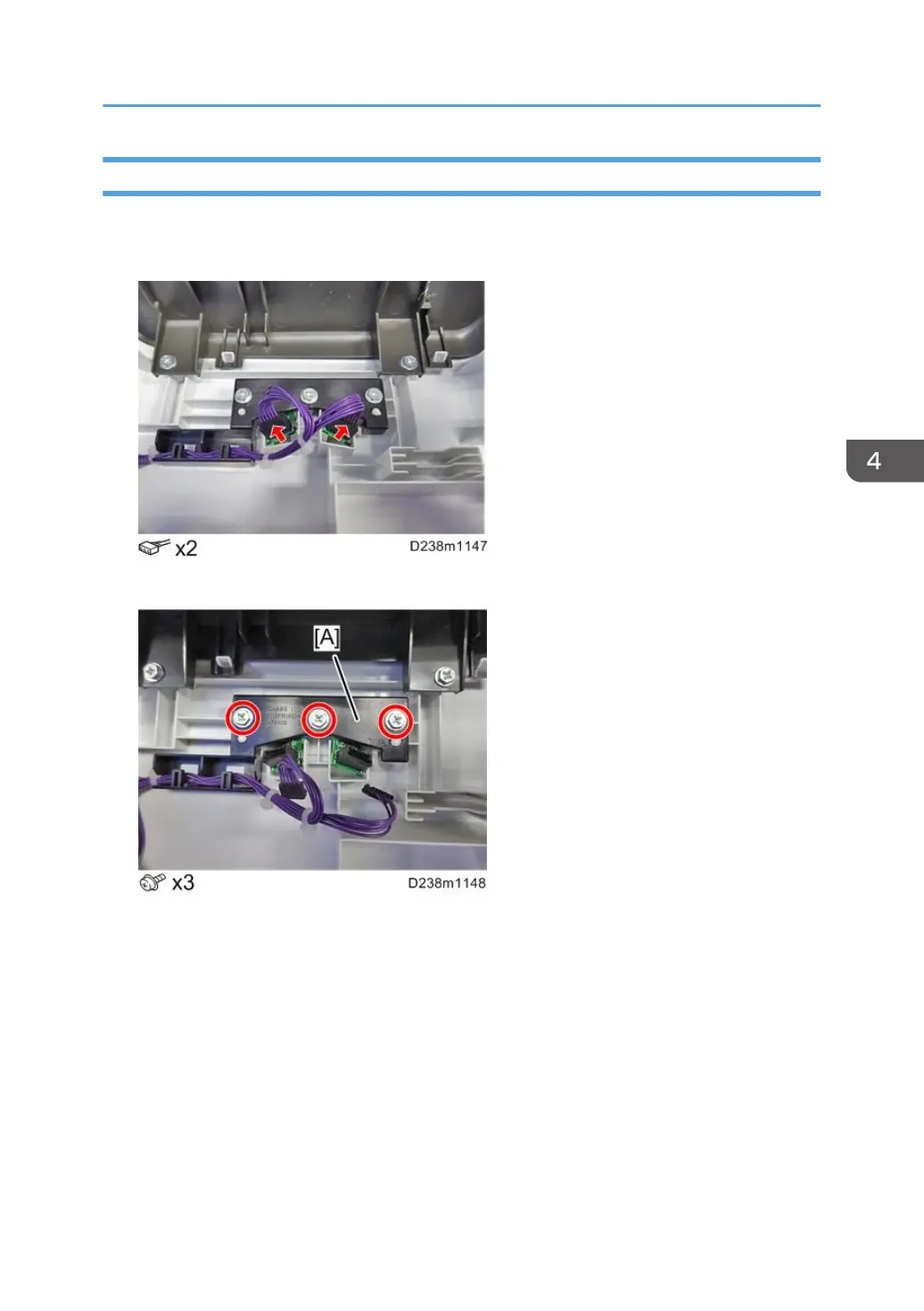

1. Front upper cover (page 413)

2. Two connectors

3. Bracket [A]
