Ricoh MP C2504 - Banner Paper Guide Tray Type M19; Accessory Check; Installation Procedure

Banner Paper Guide Tray Type M19 (D3BF)

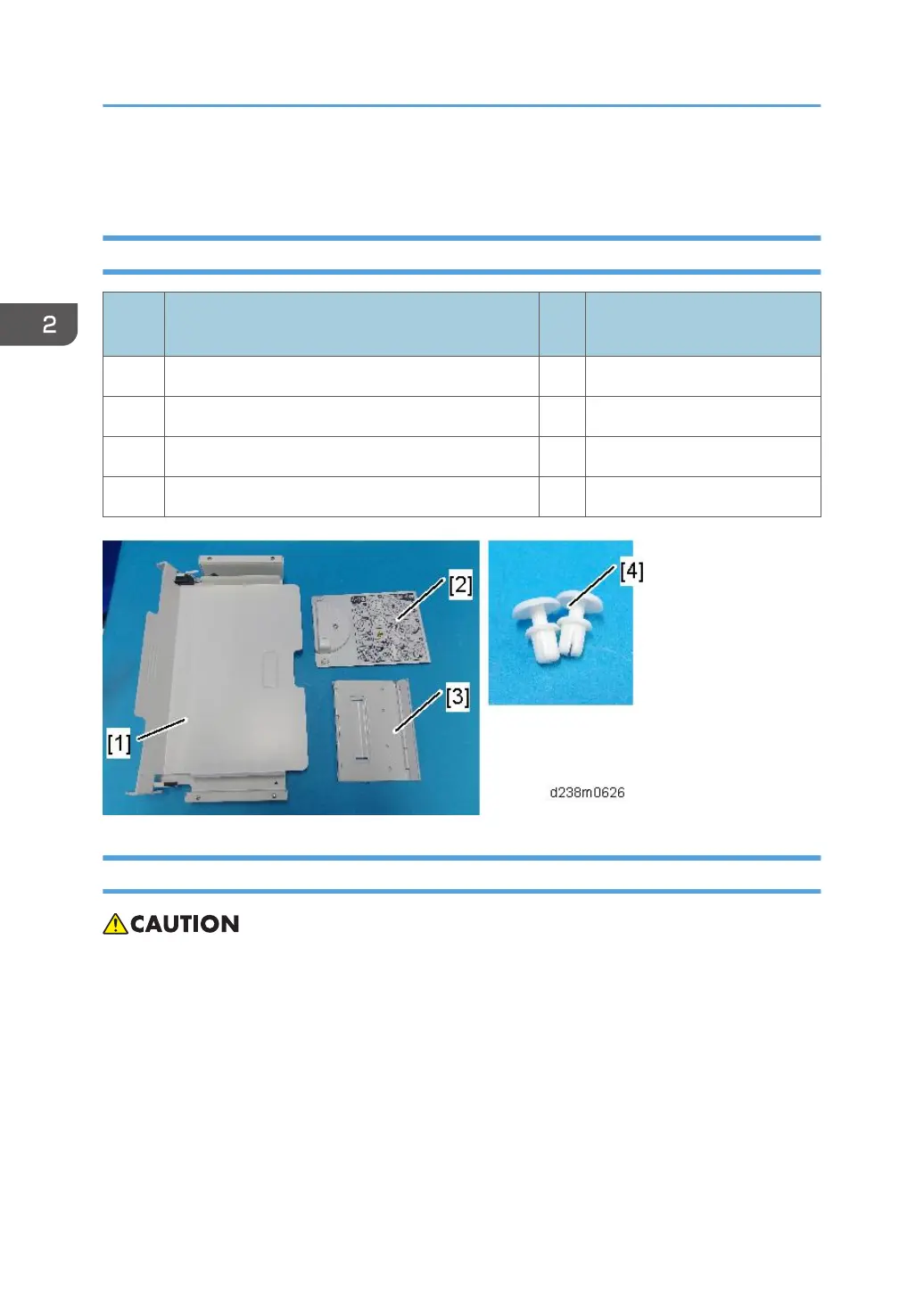

Accessory Check
No. Description
Q’t
y
Remarks
1 Main Tray 1
2 Lock Plate 1
3 Sub Tray 1
4 Rivet 2
Installation Procedure
• When installing this option, turn OFF the main power and unplug the power cord from the wall
socket. If installing without turning OFF the main power, an electric shock or a malfunction may
occur.
• Be careful not to get your finger caught in the area indicated by the red frame (the tray’s rotating
and insertion part).
2. Installation
260
