Installing a New Laser Unit

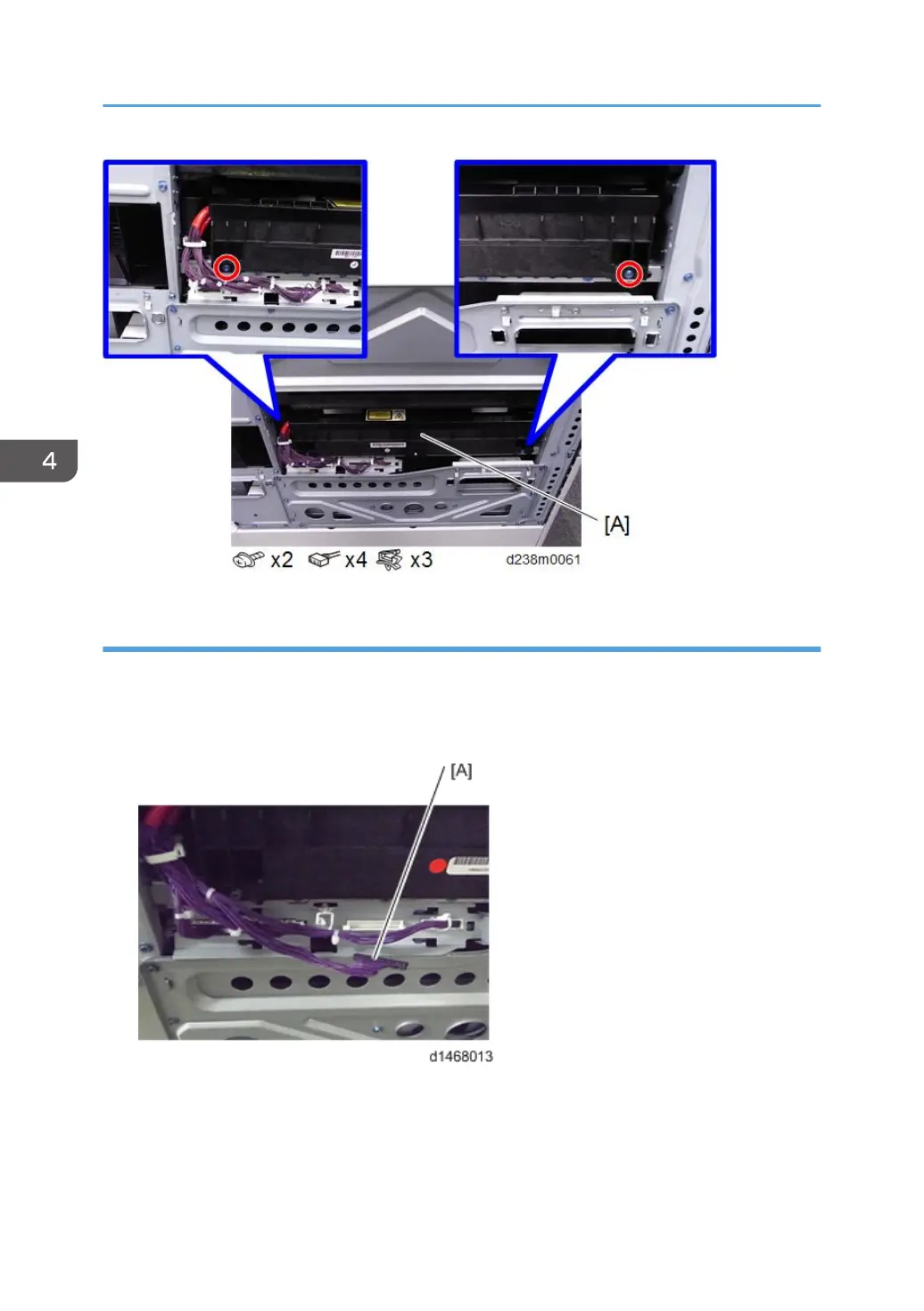

1. Insert the new laser unit in the main body carefully.

2. Connect all harnesses except the laser optics positioning motor harness [A] (2nd from

right).

3. Reassemble the machine.

4. Replacement and Adjustment

454
