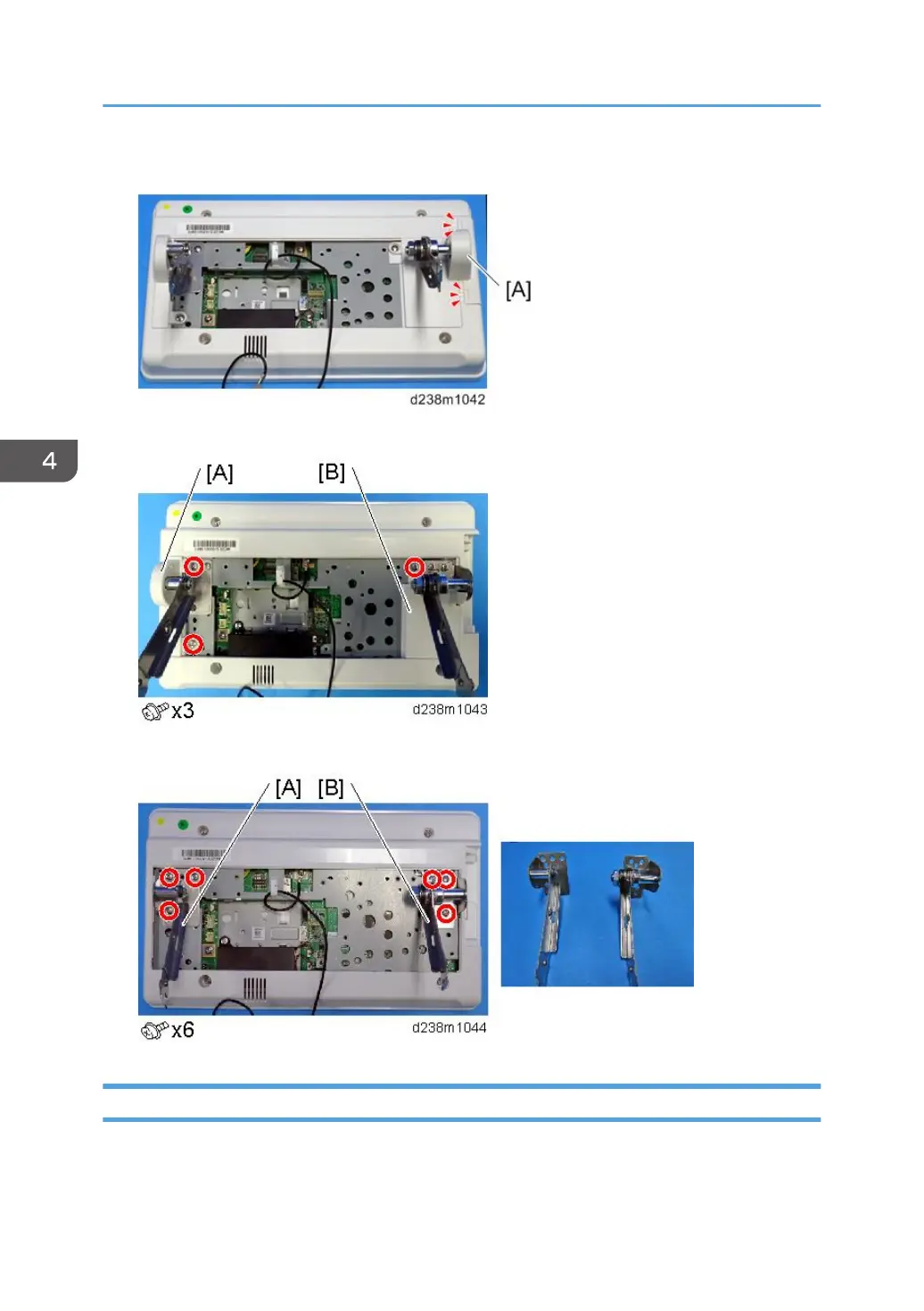

9. Right hinge cover [A] (Hook x 2)

10. Left hinge cover [A], right cover [B]

11. Hinges [A] [B]

USB Cable

1. Rear cover (page 411)

2. Scanner right cover (page 433)
