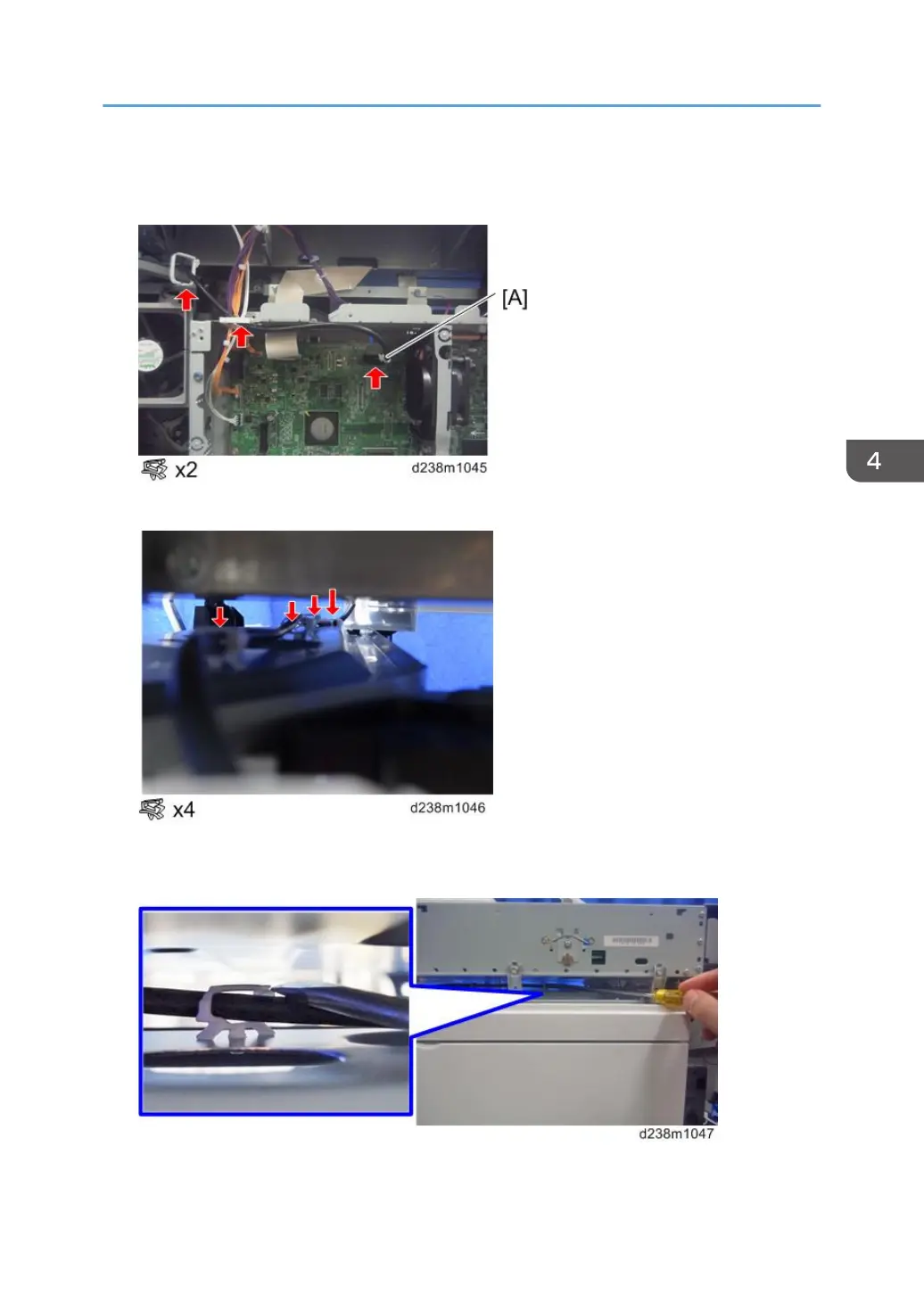

3. Controller box cover (page 600)

4. Disconnect the USB cable [A]

5. Remove the clamps on the cables under the scanner unit.

When removing a clamp, insert a long flathead screwdriver or such a tool from the side to remove

it.
