Ricoh MP C2504 - PSU (DC Power)

To Next Page

To Previous Page

1. Rear lower cover (page 412)

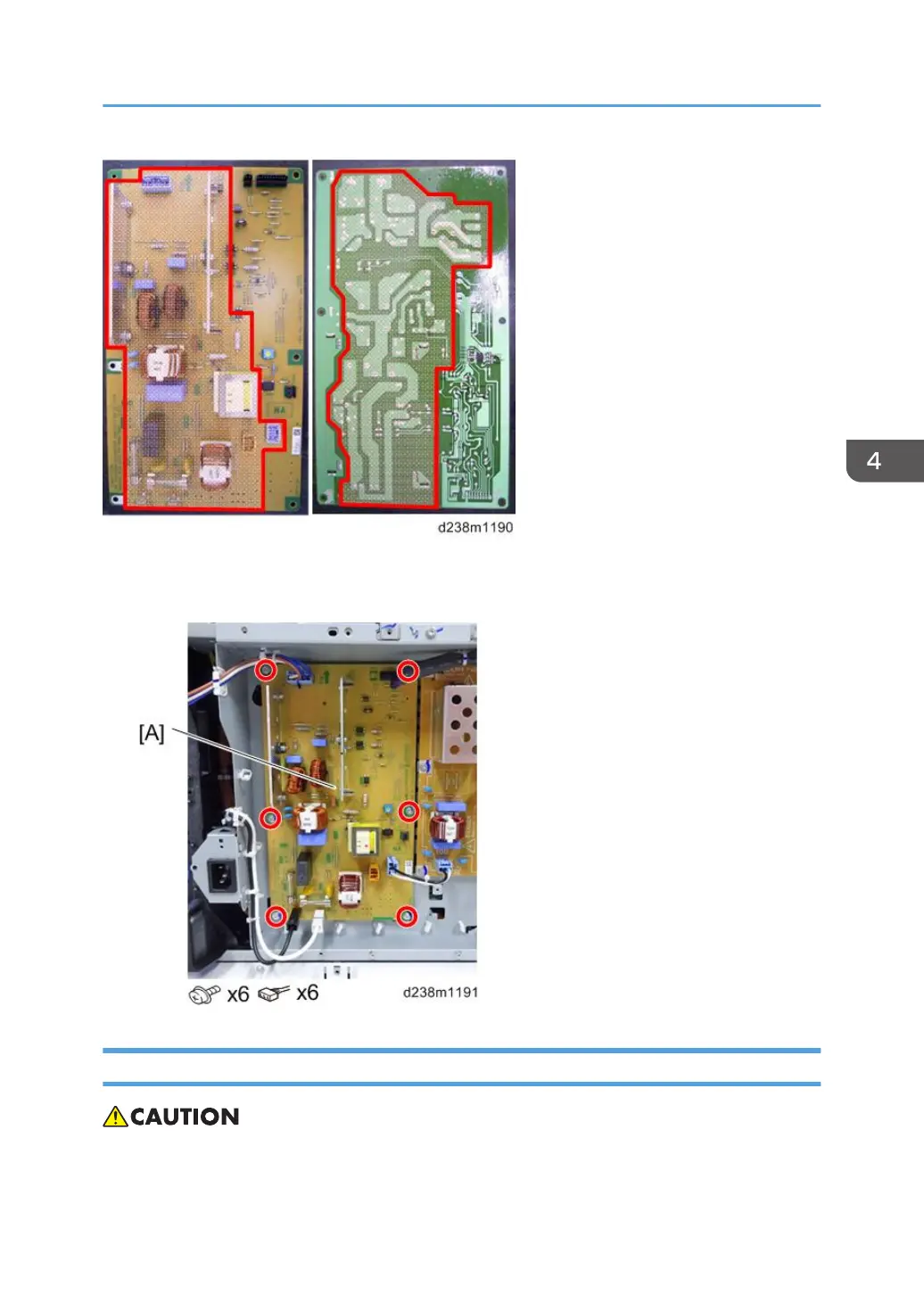

2. PSU (AC Controller Board) [A]

PSU (DC Power)

• Turn OFF the main power switch and unplug the power cord before replacing the PSU.
