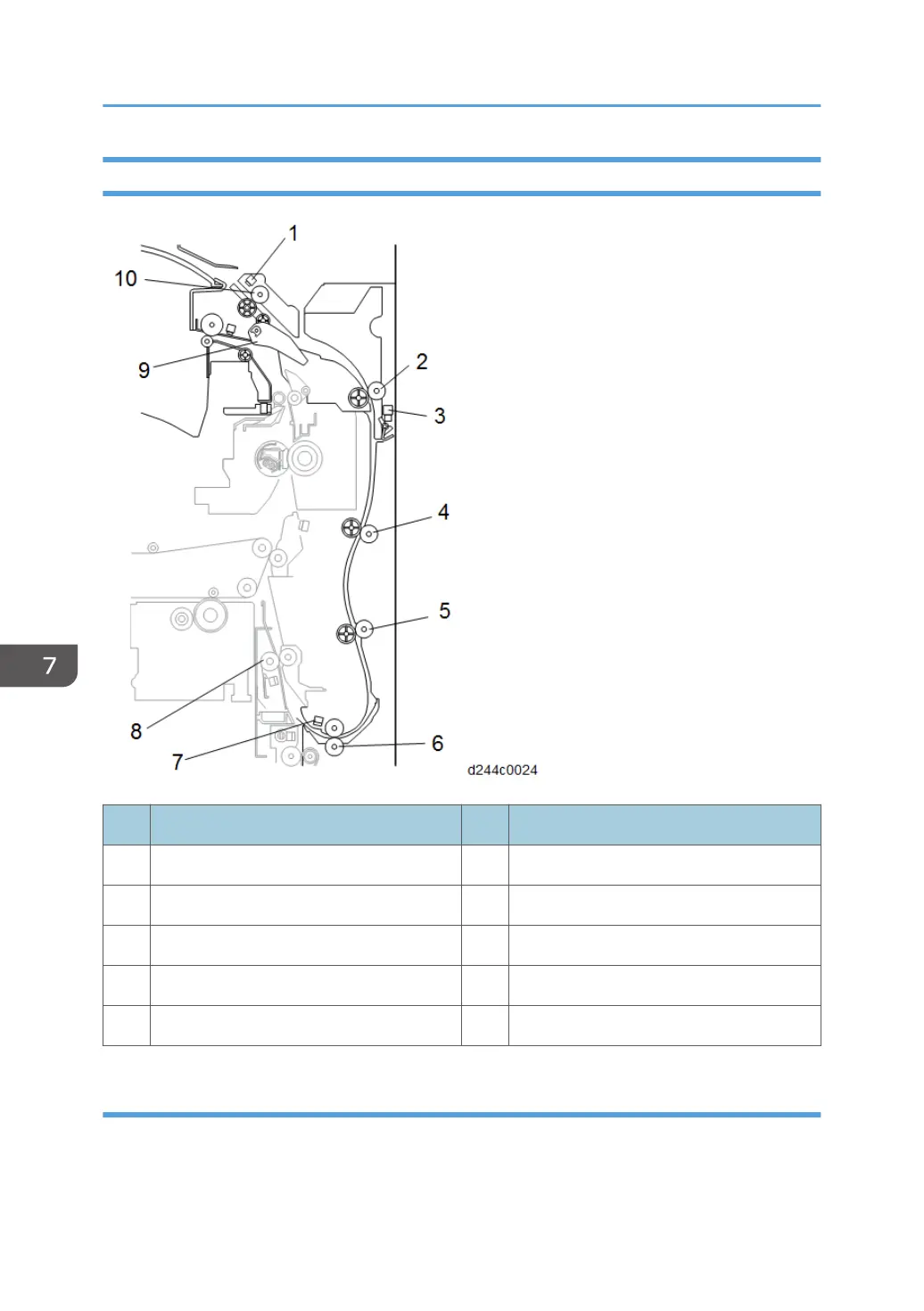

Duplex Section
No. Description No. Description
1 Reverse sensor 6 Duplex exit roller
2 Duplex entrance roller 1 7 Duplex exit sensor
3 Duplex entrance sensor 8 Registration roller
4 Duplex entrance roller 2 9 Paper exit junction gate
5 Duplex transport roller 10 Reverse roller
Transport Inversion Mechanism
The paper passes through the junction gate, and is fed to the duplex unit past reverse rotation sensor
and reverse rotation roller.
7. Detailed Descriptions
1174
