Ricoh MP C2504 User Manual

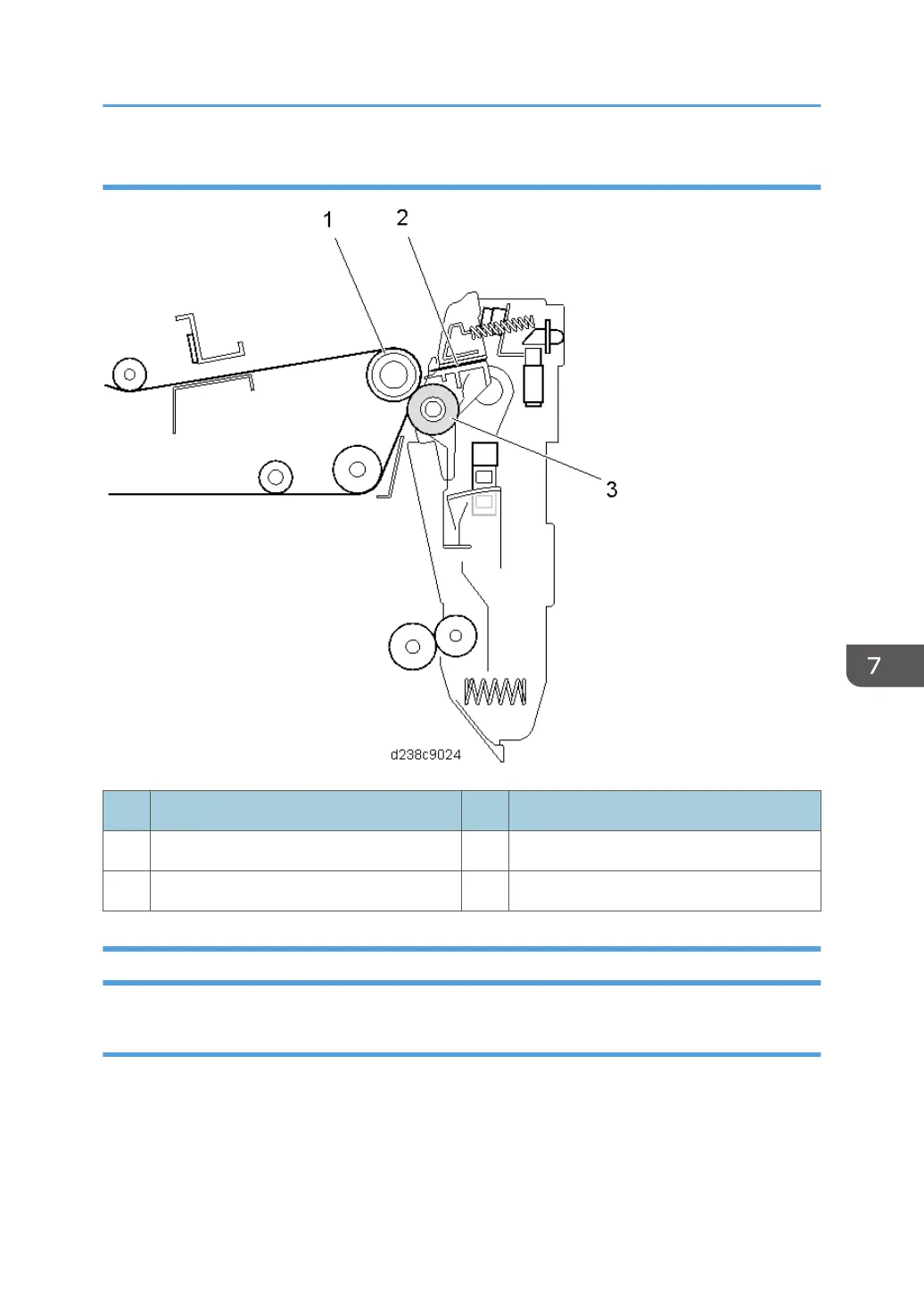

Paper Transfer Unit
No. Description No. Description
1 ITB drive roller 3 Paper transfer roller
2 Discharge plate
Image Transfer Unit mechanism
Drive Mechanism
The image transfer belt is driven by the "PCU motor: Black/ ITB drive motor" via the gear and the ITB
drive roller.
Image Transfer and Paper Transfer
1153

Ricoh MP C2504 Specifications

General

Print Technology	Laser
Functions	Print, Copy, Scan, Fax
Print Resolution	1200 x 1200 dpi
Scan Type	Flatbed, ADF
Max Scan Resolution	600 x 600 dpi
Copy Resolution	600 x 600 dpi
Max Paper Size	A3
Duplex Printing	Yes
Memory (RAM)	2 GB
Print Speed	25 ppm (A4)
Copy Speed	25 cpm (A4)
Fax Resolution	200 x 200 dpi
Paper Capacity	1200 sheets
Connectivity	USB, Ethernet, Wi-Fi
Dimensions	587 x 685 x 913 mm
Control Panel	9-inch Smart Operation Panel
