Ricoh MP C2504 - Paper Exit Unit

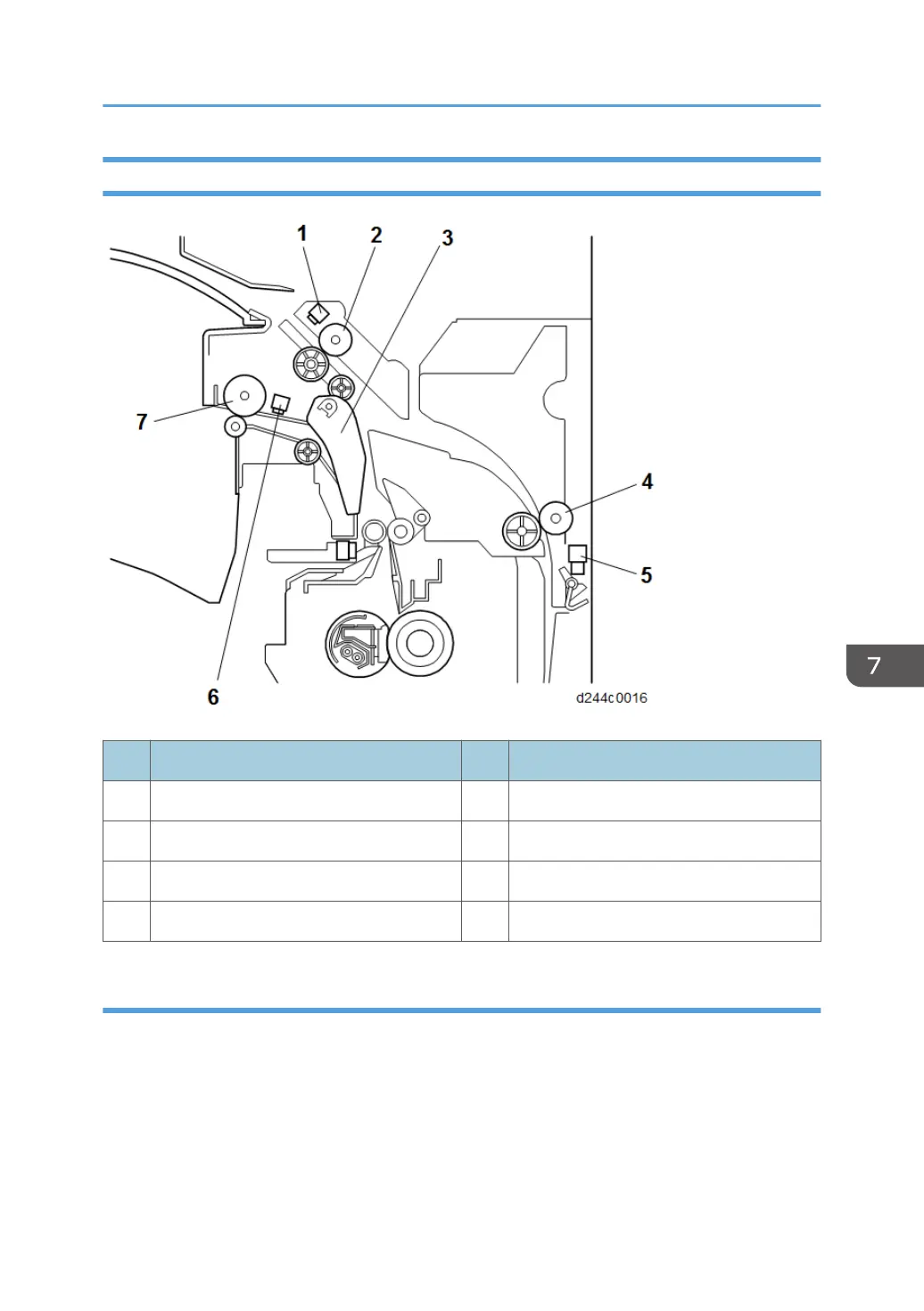

Paper Exit Unit
No. Description No. Description
1 Reverse sensor 5 Duplex entrance sensor
2 Reverse roller 6 Paper exit sensor
3 Paper exit junction gate 7 Paper exit roller
4 Duplex entrance roller 1
Delivery Location Change-over
The paper fed from the fusing unit is changed over by the junction gate in the "Paper exit/bridge unit"
direction or the "duplex unit/1-bin tray" direction.
Machine paper exit/bridge unit direction
1. The registration sensor switches ON.
2. The paper exit/pressure release motor switches ON (CCW).
Paper Feed/ Transport Section
1177
