3. When the rear edge of the paper leaves the paper exit roller, the paper exit/pressure release
motor switches OFF.

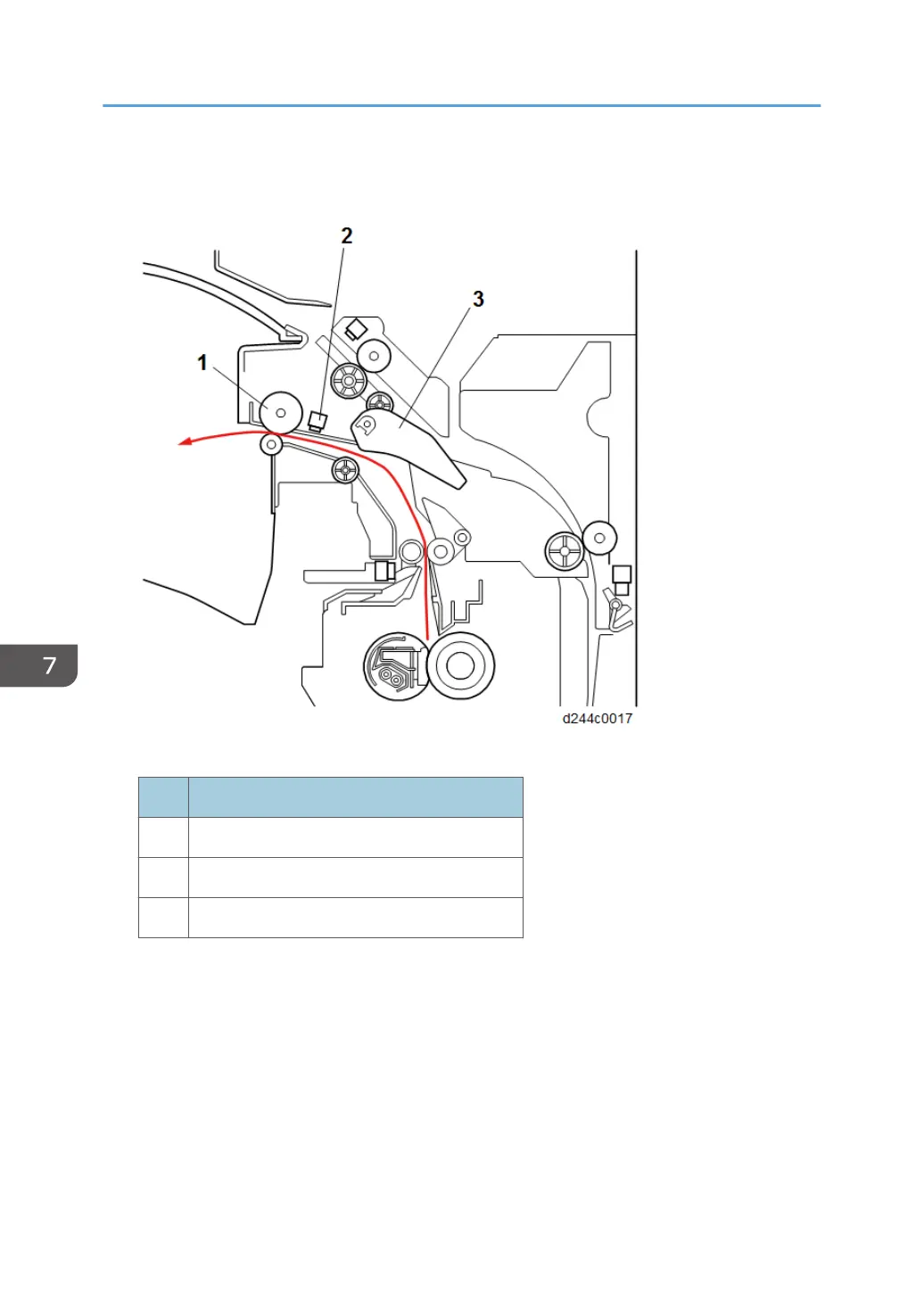

No. Description
1 Paper exit roller
2 Paper exit sensor
3 Paper exit junction gate
Duplex unit/1-bin tray direction
1. Registration sensor switches ON.
2. The reverse motor switches ON (CCW).
3. Before the leading edge of the paper reaches the paper exit junction gate, the junction gate
moves to the duplex unit/1-bin tray direction.
* If the gate is in the duplex unit/1-bin tray direction, the gate is not changed over.
4. Before reversing the paper, the paper exit solenoid switches OFF.
5. When the rear edge of the paper leaves the reverse roller, the reverse motor switches OFF.
7. Detailed Descriptions
1178

Ricoh MP C2504 Specifications

General

Print Technology	Laser
Functions	Print, Copy, Scan, Fax
Print Resolution	1200 x 1200 dpi
Scan Type	Flatbed, ADF
Max Scan Resolution	600 x 600 dpi
Copy Resolution	600 x 600 dpi
Max Paper Size	A3
Duplex Printing	Yes
Memory (RAM)	2 GB
Print Speed	25 ppm (A4)
Copy Speed	25 cpm (A4)
Fax Resolution	200 x 200 dpi
Paper Capacity	1200 sheets
Connectivity	USB, Ethernet, Wi-Fi
Dimensions	587 x 685 x 913 mm
Control Panel	9-inch Smart Operation Panel
