Ricoh MP C2504 User Manual

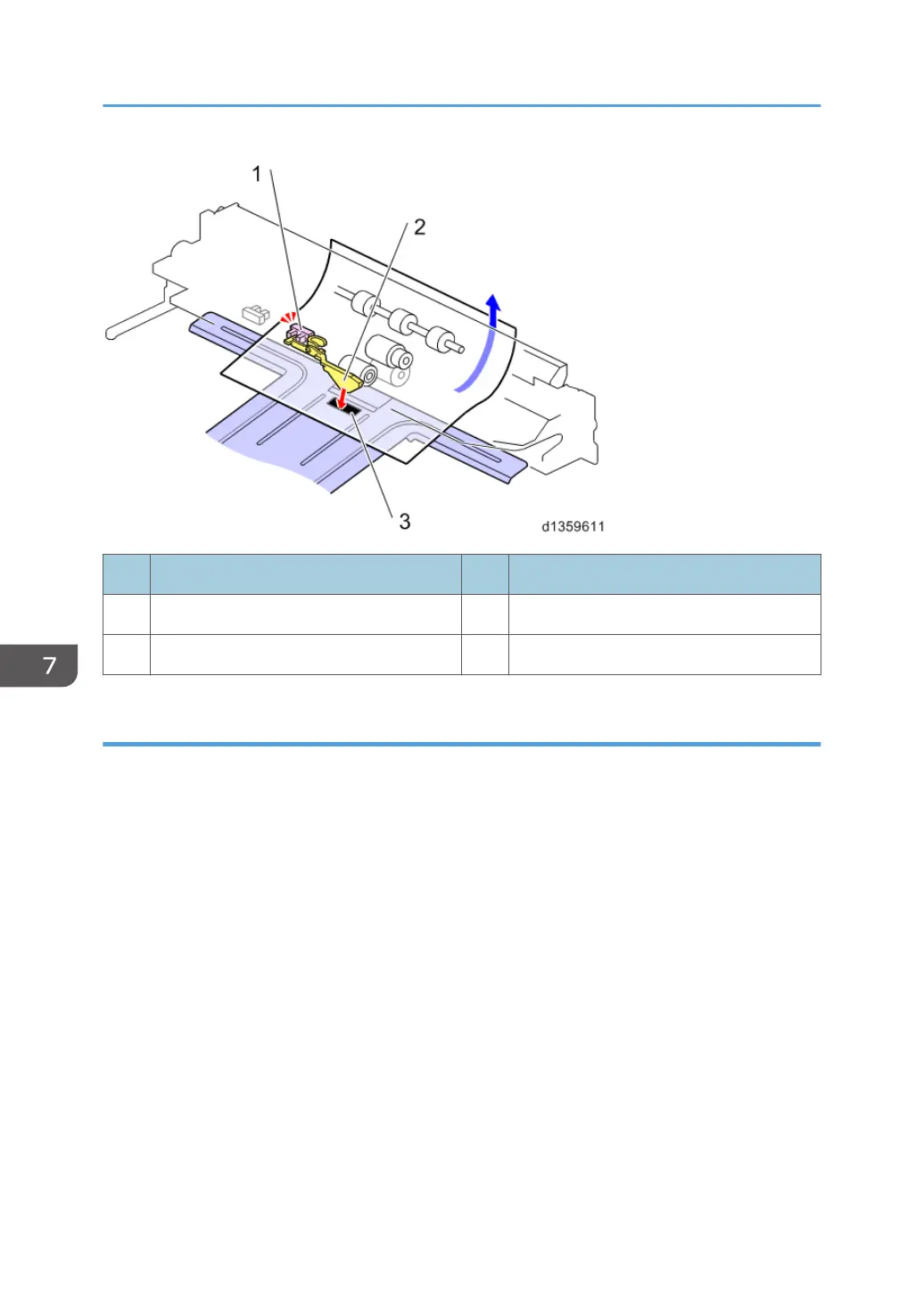

No. Description No. Description
1 Paper end sensor 3 Notch
2 End feeler
Paper Supply Drive
The 1st/2nd pick-up rollers and 1st/2nd paper feed rollers are driven by the paper feed motor. The
1st/2nd separation rollers are driven by the transport motor.
The bypass transport roller is driven by the bypass/duplex motor, and the registration roller is driven by
the registration motor.
7. Detailed Descriptions
1168

Ricoh MP C2504 Specifications

General

Print Technology	Laser
Functions	Print, Copy, Scan, Fax
Print Resolution	1200 x 1200 dpi
Scan Type	Flatbed, ADF
Max Scan Resolution	600 x 600 dpi
Copy Resolution	600 x 600 dpi
Max Paper Size	A3
Duplex Printing	Yes
Memory (RAM)	2 GB
Print Speed	25 ppm (A4)
Copy Speed	25 cpm (A4)
Fax Resolution	200 x 200 dpi
Paper Capacity	1200 sheets
Connectivity	USB, Ethernet, Wi-Fi
Dimensions	587 x 685 x 913 mm
Control Panel	9-inch Smart Operation Panel
