Ricoh MP C2504 - Drum Drive; Mechanism (PCU); PCDU (Photo Conductor and Development Unit)

To Next Page

To Previous Page

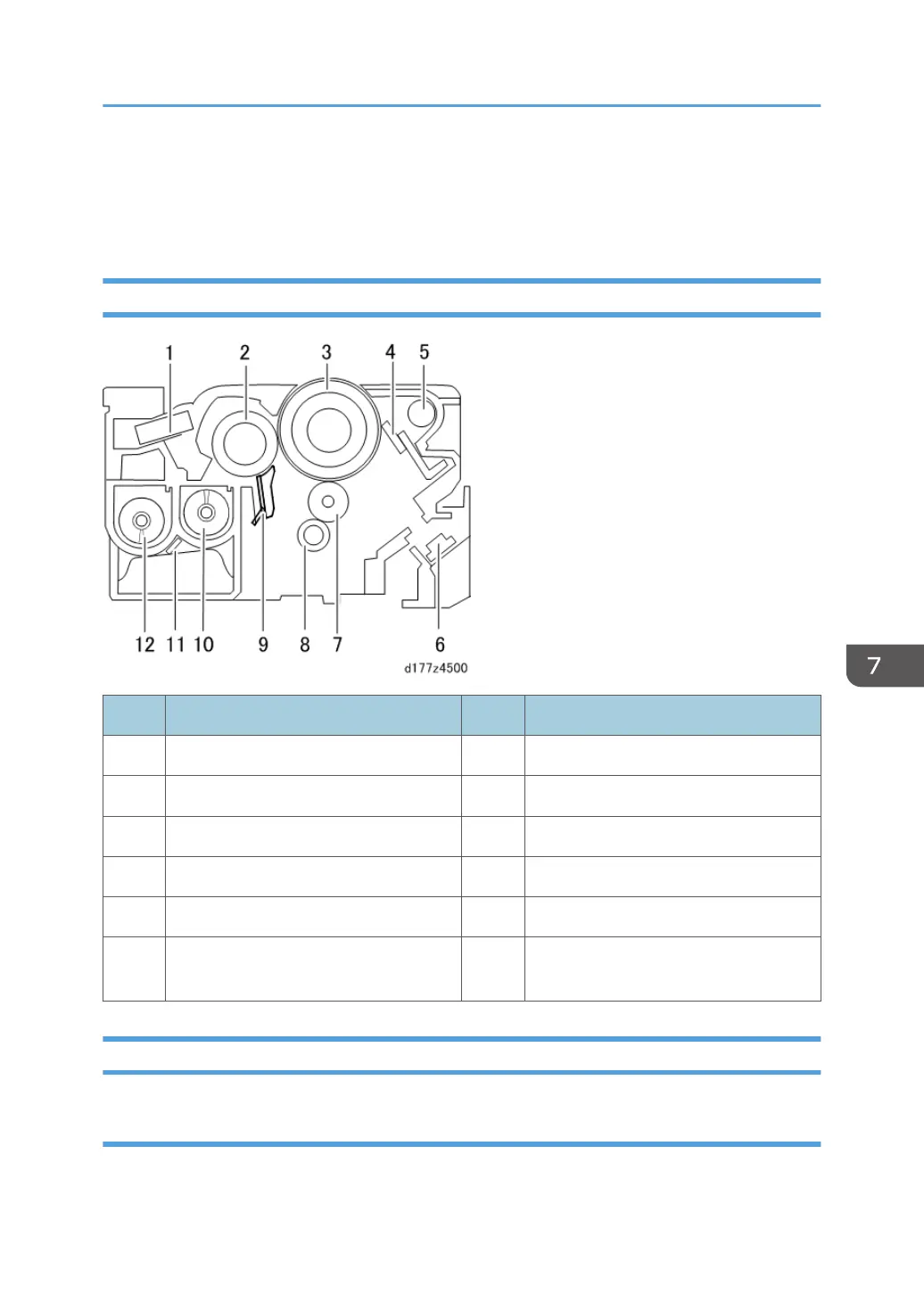

PCDU (Photo Conductor and Development

Unit)

Overview

No. Description No. Description

1 Inner pressure adjustment filter 7 Charge roller

2 Development roller 8 Cleaning roller (charge roller)

3 OPC drum 9 Doctor blade

4 Cleaning blade 10 Developer supply coil

5 Toner collection coil 11 TD sensor

Discharge lamp (installed on the main

machine)

12 Developer collection coil

Mechanism (PCU)

Drum Drive

Bk and CMY are both driven by motor.

PCDU (Photo Conductor and Development Unit)

1135
