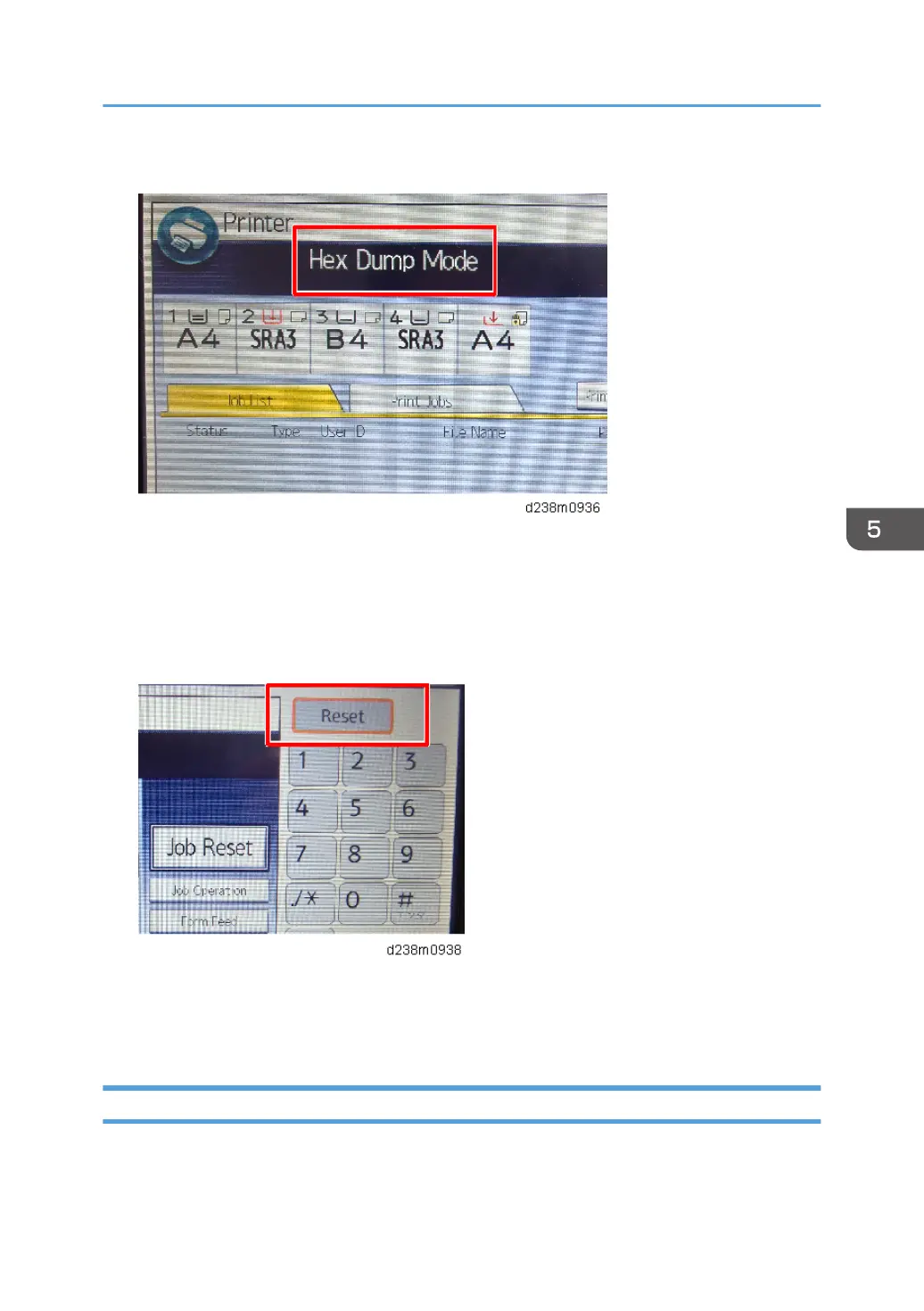

13. "Hex Dump Mode" is be displayed in the top left of the display panel.
14. Send a job to the printer. The Communicating light should start blinking.
15. As soon as the printer receives the data, it will be stored on the SD card automatically
with no print output.
Nothing is displayed on the screen, indicating that a Card Save operation was successful.
16. Press "Reset" to exit Card Save mode.
17. Change the Bit Switch Settings back to the default 00000000, then press the "#" in the
numeric keypad to register the changes.
18. Remove the SD card after the main power switch is turned OFF.
Error Messages
Card Save error messages:
• Init error: A card save process (e.g. card detection, change to kernel mode) failed to initialize.
Card Save Function
745
