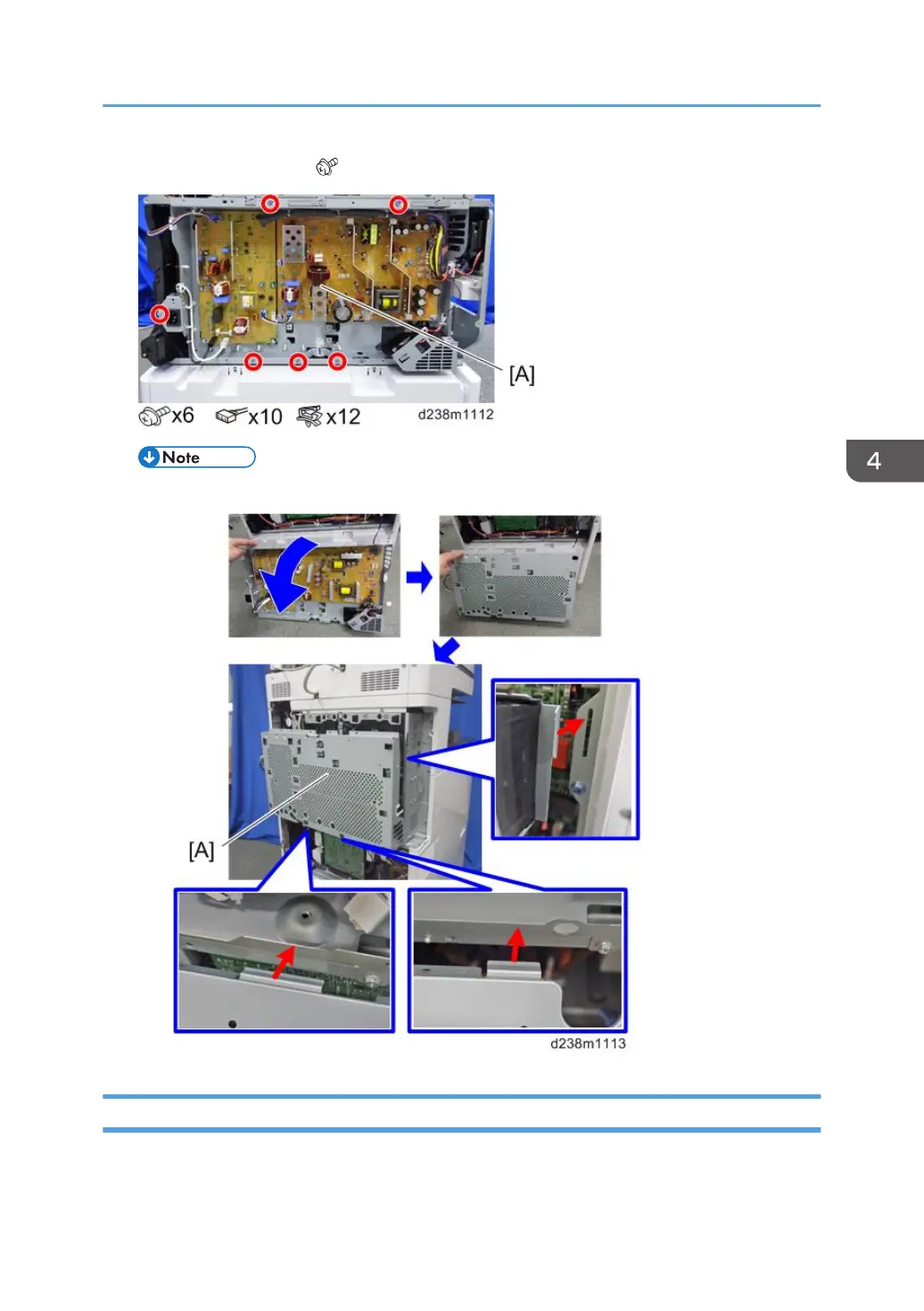

2. Power supply box [A] ( x6, Among them, tapping screw x1)

• You can hang the power box [A] on the machine by using 3 tabs.

Paper Transport IOB

1. Power supply box (page 620)
