3. Paper transfer roller [A]

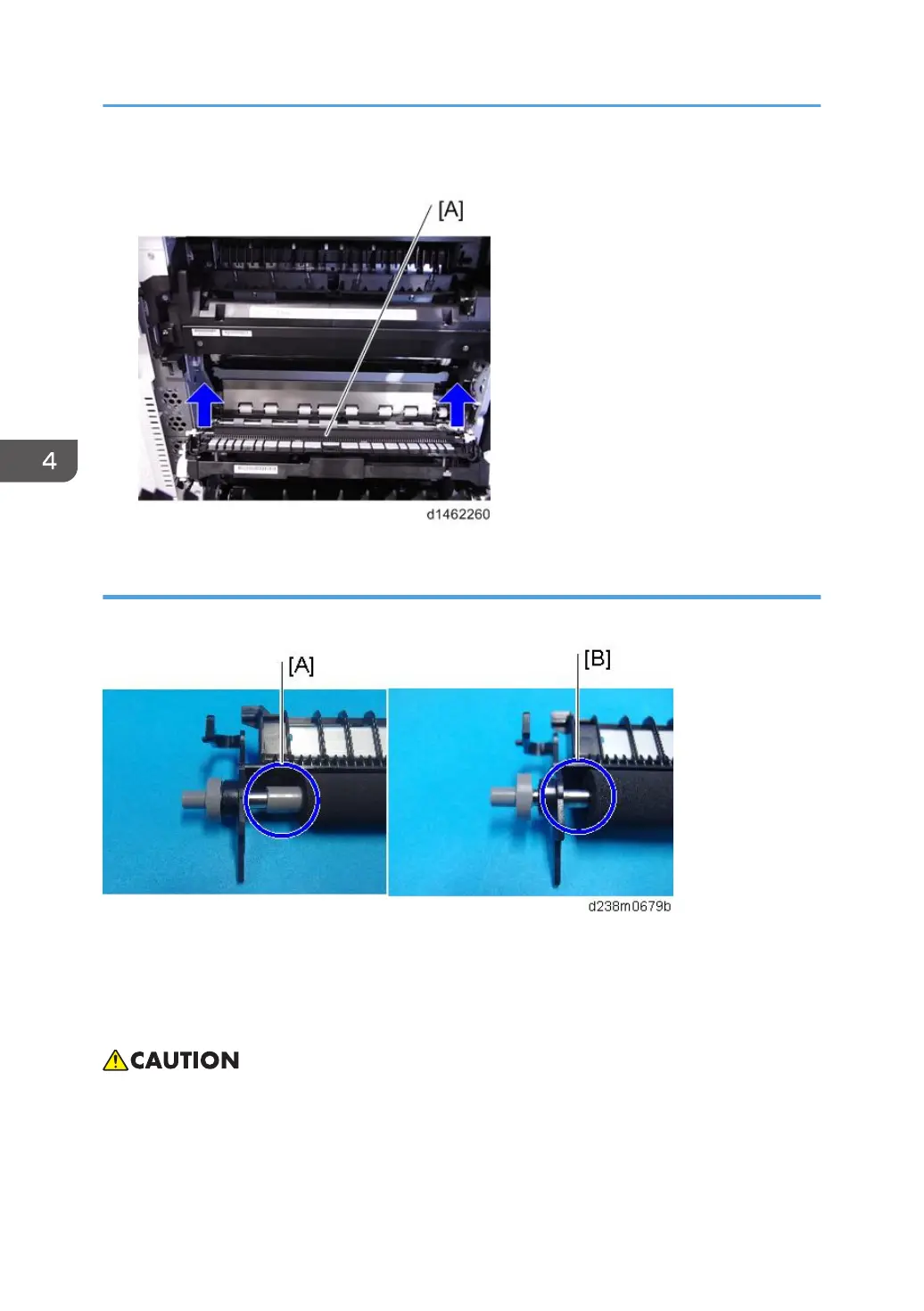

When reinstalling the paper transfer roller
When reinstalling the paper transfer roller, do not install the wrong type of roller.
[A]: Standard roller
[B]: Imageable Area Extension Unit Type M19
When attaching the paper transfer roller, make sure that the roller is set in the correct position while
referring to the three points described below.
• If the paper transfer roller is set incorrectly, the following problems may occur.
• Damage to the image transfer belt
• Roller detachment when opening and closing the paper transfer roller unit to remove a paper
jam
